1060 Corrugated Aluminum Sheet For Sale
Type: 1060 Corrugated Aluminum Sheet
Price Range: $2,900-3,000
Delivery Time: 7-10 working days
Surface Treatment: Mill Finish
Packing: 1x20FCL can load 18-20Tons
Description
Aluminum AA1060, 1060A,is known for its excellent corrosion resistance, high ductility and highly reflective finish.
Being commercially pure aluminum,1060 aluminum sheet contains more than 99.6% aluminum,1060 aluminum sheet has the characteristics of high plasticity, corrosion resistance, good electrical and thermal conductivity.

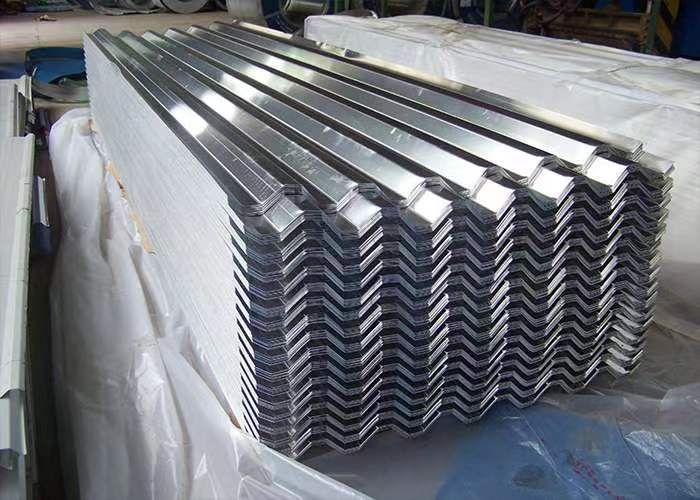

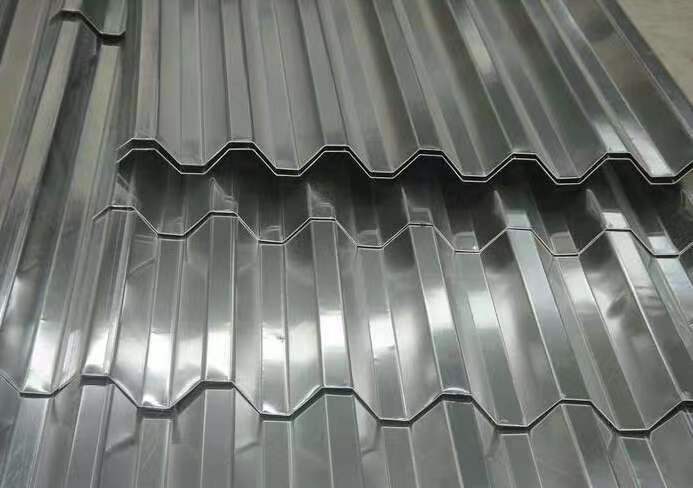

1060 Aluminum Corrugated Sheet Images
1060 Aluminum Roofing Sheet Specifications
Alloy Designations: AA1060, A1060, 1060A, AI99.6, A9105\60, EN AW-1060
Temper: O, H12, H14, H16, H18, H22, H24, H26, H28
Surface Treatment: Mill Finish
Surface Protection: Paper-interleaved, blue PVC films
Thickness: 0.3-3.0mm
Width: 300-1,500mm
Size: 1000x2000mm, 4x8ft, 1200x2400mm, 1219x2438mm, 1220x2440mm, 1250x2500mm, 1500x3000mm
Packaging: Standard seaworthy export packing;
MOQ: 1Ton per size, total 20Tons for one order
Standard: GB/T3880, ASTM B209, EN 485
1060 Aluminum Characteristics (Pure Al for guidance only)
1060 Aluminum Chemical Compositions | |||||||||
Element | Manganese (Mn) | Iron (Fe) | Chromium (Cr) | Copper (Cu) | Magnesium (Mg) | Silicon (Si) | Zinc (Zn) | Titanium (Ti) | Aluminium (Al) |
Percentage % | 0.0-0.03 | 0.0-0.35 | - | 0.0-0.05 | 0.0-0.03 | 0.0-0.25 | 0.0-0.05 | 0.0-0.03 | 99.6 |
1060 Aluminum Mechanical Properties | ||||||||
Property | (UTS)Tensile Strength
| (Proof)Yield Strength | Elongation at Break | Shear Modulus | Shear Strength | Elastic Modulus
| Fatigue Strength | Poisson’s Ratio |
Value | 63-130 MPa | 17-110 MPa | 1.1-30 % | 26 GPa | 42-75 MPa | 68 GPa | 15-50 MPa | 0.33 |
1060 Aluminum Thermal Properties | |||||||
Property | Latent Heat of Fusion | Maximum Temperature: Mechanical
| Melting Completion (Liquidus) | Melting Onset (Solidus) | Specific Heat Capacity | Thermal Conductivity | Thermal Expansion |
Value | 400 J/g | 170 °C | 660 °C | 650 °C | 900 J/kg-K | 230W/m-K | 24 µm/m-K |
1060 Corrugated Sheet Application
It is wildly used for industrial and civil buildings, warehouses, special buildings, roofs, walls, internal and external wall decorations of large-span steel structures.

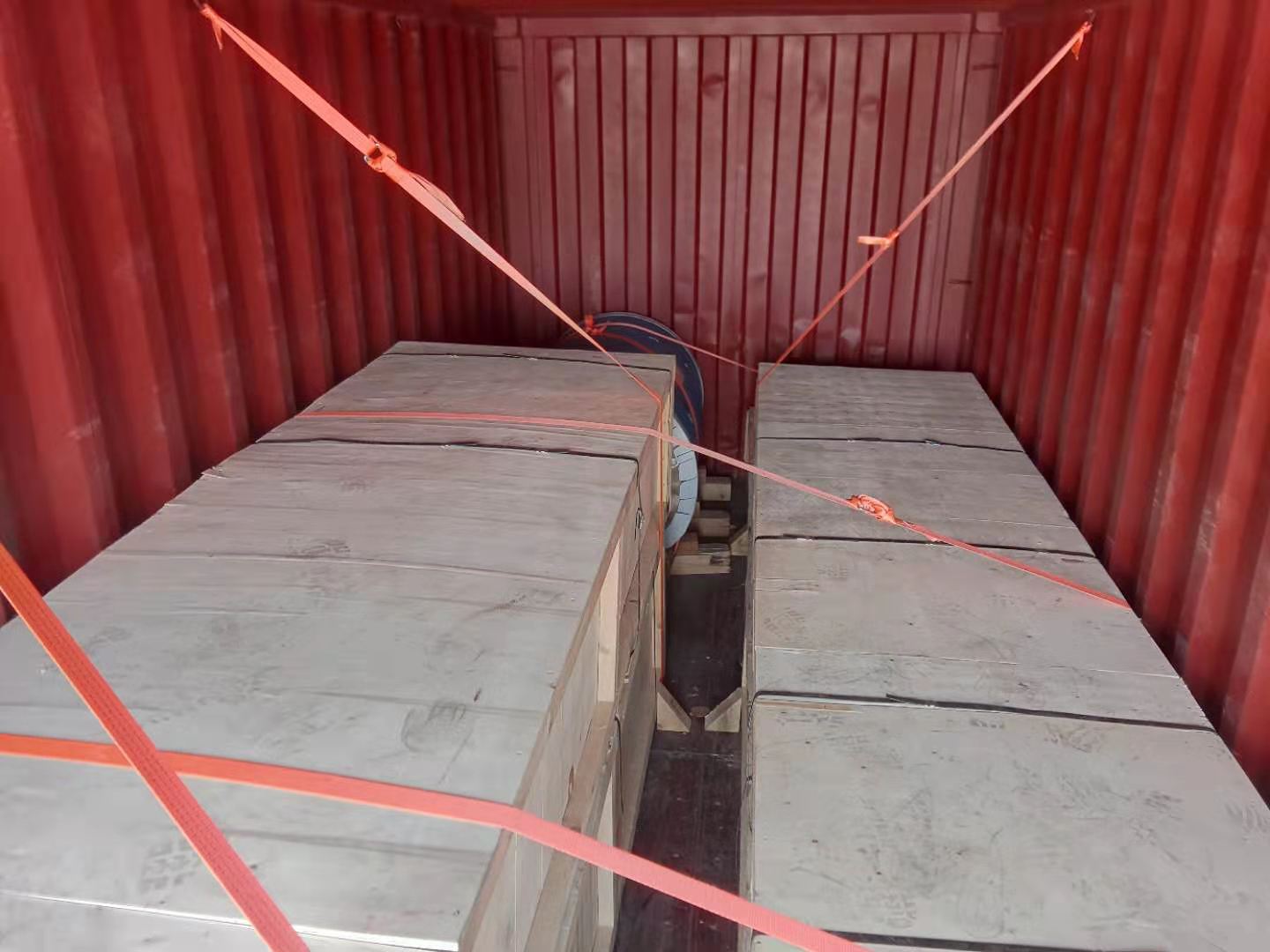

1060 Corrugated Sheet Packing and Loading
1.Surface with blue PE films or paper-interleaved.
2.Packing: Export wooden pallet packing suitable to prevent moisture and safe for ocean delivery.
3.For FCL 1 x 20GP can load approx 20MT. For LCL 1MT-10MT
1060 Aluminum Corrugated Sheet Manufacturer
We are a 1060 corrugated Sheet manufacturer from China. We supply AA1060 aluminum roofing sheets for sale. We can customize it according to your needs.
Kefio Alum manufacturers have been successful in Southeast Asia, the Middle East, Africa, and South America, such as the Philippines,Indonesia, Mozambique,Ecuador, UAE,Nigeria,Ghana, etc…
