1060 H24 Aluminum tread checker sheet plate for sale
Type: 1060 Aluminum tread sheet
Price Range: $2,950-3,000
Delivery Time: 5-7 working days
Surface Treatment: Mill Finish
Design: 5 Bar,Diamond,Pointer,Lentil,Pattern
Standard size: 1220x2440mm,1250x2500mm
Packing: 1x20FCL can load 18-20Tons
Description
Best Aluminum tread plate supplier from KEFIO
Aluminum tread plate with 5 bars
Get ready for ultimate safety and durability with Kefio's aluminum tread plates! Our aluminum tread plates provide an anti-slip surface for ramps, flooring, walkways, stair nosing, and so on. Its superior strength makes it ideal to withstand high foot traffic and its durability ensures it keeps your floors safe for many years.
Being commercially pure aluminum,1060 aluminum sheet contains more than 99.6% aluminum,1060 aluminum sheet has the characteristics of high plasticity, corrosion resistance, good electrical and thermal conductivity.

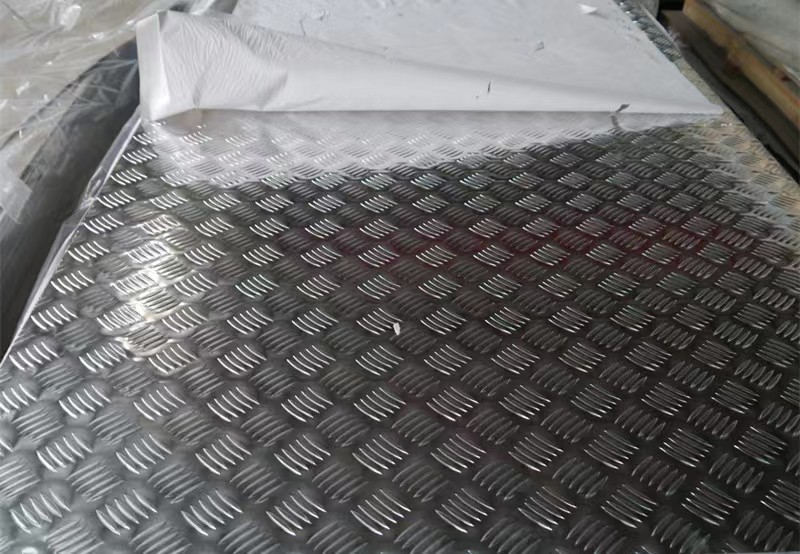

1060 5 bars aluminum checker plate Images
1060 Aluminum Sheet Specifications
Alloy Designations: AA1060, A1060, 1060A, AI99.6, A9105\60, EN AW-1060
Temper: O, H12, H14, H16, H18, H22, H24, H26, H28
Surface Treatment: Mill Finish
Surface Protection: Paper-interleaved, blue PVC films
Thickness: 1.2-6.0mm
Width: 500-1500mm
Length: 800-4000mm
Size: 1000x2000mm, 4x8ft, 1200x2400mm, 1219x2438mm, 1220x2440mm, 1250x2500mm, 1500x3000mm,
Packaging: Standard seaworthy export packing;
MOQ: 1Ton per size, total 20Tons for one order
Standard: GB/T3880, ASTM B209, EN 485
1060 Aluminum Characteristics (Pure Al for guidance only)
1060 Aluminum Chemical Compositions | |||||||||
Element | Manganese (Mn) | Iron (Fe) | Chromium (Cr) | Copper (Cu) | Magnesium (Mg) | Silicon (Si) | Zinc (Zn) | Titanium (Ti) | Aluminium (Al) |
Percentage % | 0.0-0.03 | 0.0-0.35 | - | 0.0-0.05 | 0.0-0.03 | 0.0-0.25 | 0.0-0.05 | 0.0-0.03 | 99.6 |
1060 Aluminum Mechanical Properties | ||||||||
Property | (UTS)Tensile Strength
| (Proof)Yield Strength | Elongation at Break | Shear Modulus | Shear Strength | Elastic Modulus
| Fatigue Strength | Poisson’s Ratio |
Value | 63-130 MPa | 17-110 MPa | 1.1-30 % | 26 GPa | 42-75 MPa | 68 GPa | 15-50 MPa | 0.33 |
1060 Aluminum Thermal Properties | |||||||
Property | Latent Heat of Fusion | Maximum Temperature: Mechanical
| Melting Completion (Liquidus) | Melting Onset (Solidus) | Specific Heat Capacity | Thermal Conductivity | Thermal Expansion |
Value | 400 J/g | 170 °C | 660 °C | 650 °C | 900 J/kg-K | 230W/m-K | 24 µm/m-K |
1060 Aluminum Tread plate features
1. Good anti-oxidation effect can make the life of the aluminum grating longer.
2. Easy to clean, the surface of the aluminum grid plate is not easy to be stained, just wipe it gently with a neutral detergent.
3. Good corrosion resistance and excellent weld-ability, can be used for ship anti-skid plates, and can be used for a long time in the harsh environment of the ocean.
1060 Aluminum Tread Plate Application
1. Lighting accessories, solar reflectors, building appearance
2. Interior decoration: ceiling, wall, furniture, cabinets, etc.
3. Anti-slip applications such as elevators, rails, ships, and medical equipment
4. Car interior and exterior decoration
5. Household appliances, refrigerators, microwave ovens, audio equipment, etc.
1060 Aluminum Tread Plate Package Dimension For Reference Only
For Flat Sheet&Plate (Based on density of 2,700 kg/m3) | |||
Thickness (mm)&Standard Size | Weight (Kg) | Estimated(Pcs) | Weight/Pcs |
2x1000x2000 | 1,000 | 63 PCS | 15.87 kgs |
2x1220x2440 | 1,000 | 42 PCS | 23.81 kgs |
2x1250x2500 | 1,000 | 40 PCS | 25.00 kgs |
2x1500x3000 | 1,000 | 28 PCS | 35.71 kgs |

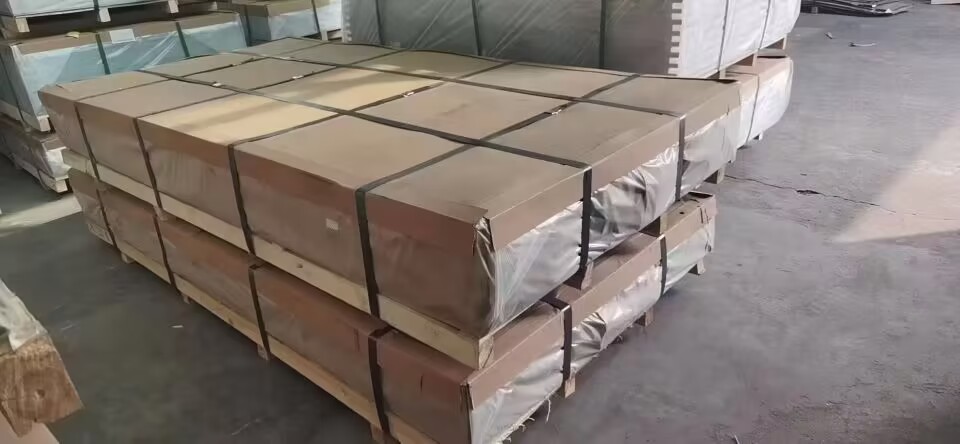

1060 Aluminum Chequered Plate Packing and Loading
1.Surface with blue PE films or paper-interleaved.
2.Packing: Export wooden pallet packing suitable to prevent moisture and safe for ocean delivery.
3.For FCL 1 x 20GP can load approx 20MT. For LCL 1MT-10MT
1060 Aluminum Checkered Sheet Manufacturer
We are a 1060 aluminum checker sheet manufacturer from China. We supply aluminum tread plate for sale. We can customize it according to your needs.
Kefio Alum manufacturers have been successful in Southeast Asia, the Middle East, Africa, and South America, such as the Philippines,Indonesia, Mozambique,Ecuador, UAE, Fiji,etc…
