Description
2 series aluminum alloy, also known as duralumin, the main alloying element is copper.2024 aluminium sheet is a typical hard aluminium alloy (Al-Cu-Mg). It has high strength and good cutting performance, has a certain heat resistance, heat treatment, the disadvantage is poor corrosion resistance.2024 aluminum sheet is a high-strength, hard aluminum that can be heat-treated and strengthened.

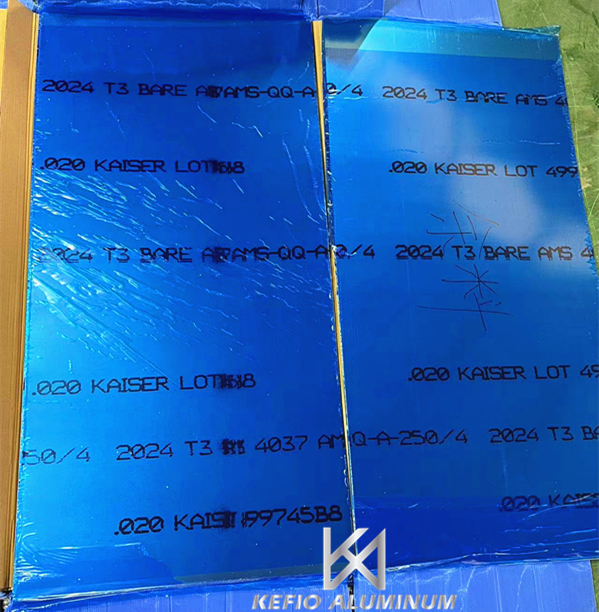

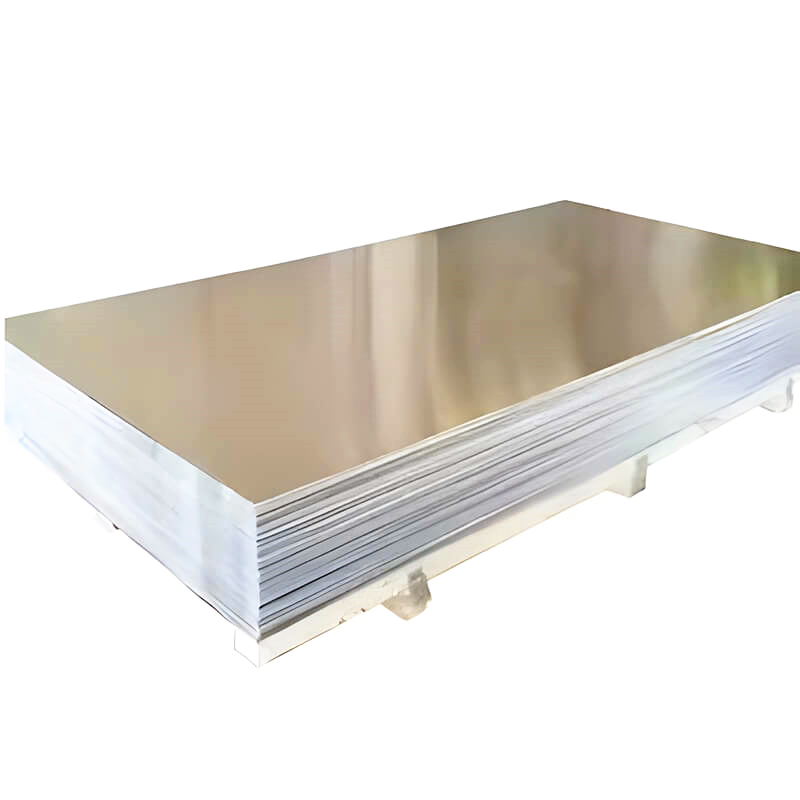

AA2024 Aluminum Flat Sheet Images
AA2024 Aluminum smooth Sheet Specifications
Aluminum Alloy:2024
Alloy Designations: 2024, A92024, BS 2L97,3.1355, AlCu4Mg1,A-U4G1, EN AW-2024
Temper: O,T3,T351,T4,T651,T851
Surface Treatment: Mill Finish
Surface Protection: Paper-interleaved, blue PVC films
Thickness: 0.3-6.0mm
Width: 600-2,200mm
Length: 800-11,000mm
Size: 4x8ft, 1200x2400mm,1220x2440mm, 1250x2500mm, 1500x3000m
Packaging: Standard seaworthy export packing;
MOQ: 1Ton per size, total 20Tons for one order
Standard: GB/T3880, ASTM B209, EN 485
2024 Al-Cu Aluminum Characteristics for guidance only)
2024 Aluminum Chemical Compositions | |||||||||
Element | Manganese (Mn) | Iron (Fe) | Chromium (Cr) | Copper (Cu) | Magnesium (Mg) | Silicon (Si) | Zinc (Zn) | Titanium (Ti) | Aluminium (Al) |
Percentage % | 0.3-0.9 | 0.0-0.5 | 0.0-0.1 | 3.8-4.9 | 1.2-1.8 | 0.0-0.5 | 0.0-0.25 | 0.0-0.15 | Remainder |
2024 Aluminum Mechanical Properties | ||||||||
Property | (UTS)Tensile Strength
| (Proof)Yield Strength | Elongation at Break | Shear Modulus | Shear Strength | Elastic Modulus
| Fatigue Strength | Poisson’s Ratio |
Value | 200-540 MPa | 100-490 MPa | 4.0-16% | 27 GPa | 130-320 MPa | 71 GPa | 90-180MPa | 0.33 |
2024 Aluminum Thermal Properties | |||||||
Property | Latent Heat of Fusion | Maximum Temperature: Mechanical
| Melting Completion (Liquidus) | Melting Onset (Solidus) | Specific Heat Capacity | Thermal Conductivity | Thermal Expansion |
Value | 390 J/g | 200 °C | 640 °C | 500 °C | 880 J/kg-K | 120W/m-K | 23 µm/m-K |
2024 Aluminum Plain Sheet Application
It is mainly used in aircraft structure aerospace, weapons, engines, pistons, automobile body, ship hull and stress components.Skeleton parts, skins, bulkheads, ribs, spar, rivets and other working parts.
2024 Aluminum Plain Sheet Features
1.Poor corrosion resistance easy to be corroded
2.Can be hardened heat treatment, high strength, commonly known as duralumin.
3.Good heat resistance, good processability, good cutting performance
4.Alloy with copper as the main alloying element (Al-Cu alloy). The highest content of copper is about 3-5%.
2024 Aluminum Sheet Packing and Loading
1.Surface with blue PE films or paper-interleaved.
2.Packing: Export wooden pallet packing suitable to prevent moisture and safe for ocean delivery.
3.For FCL 1 x 20GP can load approx 20MT. For LCL 1MT-10MT
2024 Aluminum Smooth Sheet Manufacturer
We are a 2024 aluminum smooth sheet manufacturer from China. We supply 2024 T4 smooth sheets and 2024 T351 aluminum flat sheets for sale. We can customize it according to your needs.Kefio Aluminum manufacturers have been successful in Southeast Asia, the Middle East, Africa, and South America, such as the Philippines,Indonesia, Mozambique,Ecuador, UAE, Peru,Chile,etc…
