3003 Corrugated Aluminum roofing sheet for sale
Type: 3003 Corrugated Aluminum Sheet
Price Range: $2,900-3,000
Delivery Time: 7-10 working days
Surface Treatment: Mill Finish
Packing: 1x20FCL can load 18-20Tons
Description
Corrugated aluminum sheet is also called aluminum tile, pressure-shape aluminum plate, corrugated aluminum plate. It is aluminum sheet rolled and cold-formed into various wave-shaped pressure sheets.3003 aluminum alloy is the most widely used of all aluminum alloys.It is essentially commercially pure aluminum with the addition of manganese which increases the strength some 20%. It has excellent work-ability, weld ability and resistance to corrosion. It may be deep drawn or spun, brazed or welded.

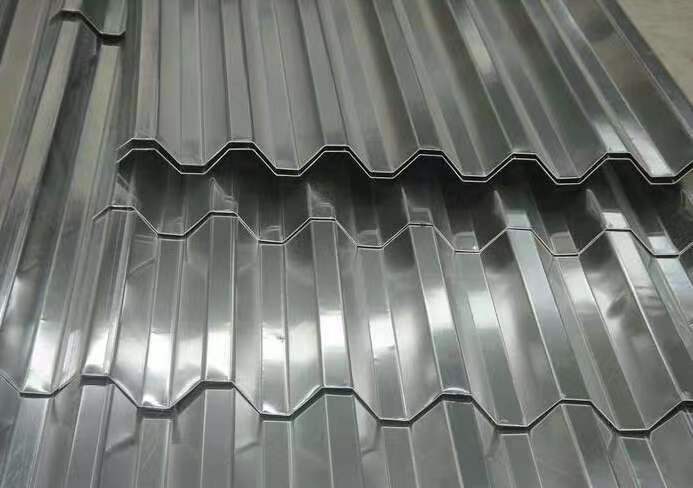

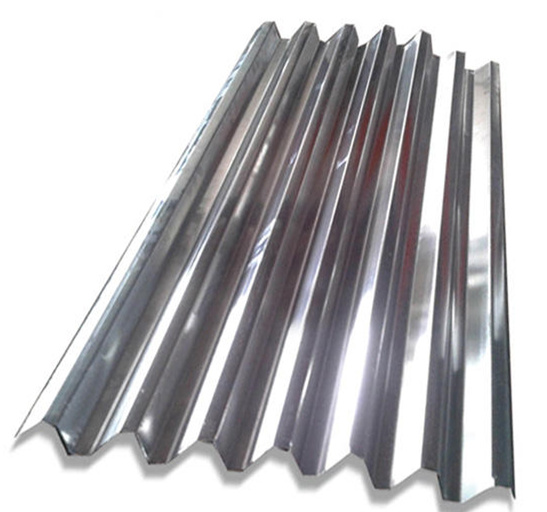

3003 Aluminum Roofing Sheet Images
3003 Corrugated Aluminum Sheet Specifications
Aluminum Alloy:3003
Alloy Designations: 3003,AlMn1Cu,3.0517, A93003,A-M1,EN AW-3003
Temper: O, H12, H14, H16, H18, H22, H24, H26, H28
Surface Treatment: Mill Finish
Surface Protection: Paper-interleaved, blue PVC films
Thickness: 0.2-3.0mm
Width: 300-1,500mm
Size: 1000x2000mm, 4x8ft, 1220x2440mm, 1250x2500mm, 1500x3000mm,
Packaging: Standard seaworthy export packing;
MOQ: 1Ton per size, total 20Tons for one order
Standard: GB/T3880, ASTM B209, EN 485
3003 Al-Mn Aluminum Characteristics for guidance only)
3003 Aluminum Chemical Compositions | |||||||||
Element | Manganese (Mn) | Iron (Fe) | Chromium (Cr) | Copper (Cu) | Magnesium (Mg) | Silicon (Si) | Zinc (Zn) | Titanium (Ti) | Aluminium (Al) |
Percentage % | 1.0-1.5 | 0.0-0.70 | - | 0.05-0.20 | - | 0.0-0.95 | 0.0-0.1 | - | Remainder |
3003 Aluminum Mechanical Properties | ||||||||
Property | (UTS)Tensile Strength
| (Proof)Yield Strength | Elongation at Break | Shear Modulus | Shear Strength | Elastic Modulus
| Fatigue Strength | Poisson’s Ratio |
Value | 110-240 MPa | 40-210 MPa | 1.1-28 % | 26 GPa | 68-130 MPa | 70 GPa | 39-90MPa | 0.33 |
3003 Aluminum Thermal Properties | |||||||
Property | Latent Heat of Fusion | Maximum Temperature: Mechanical
| Melting Completion (Liquidus) | Melting Onset (Solidus) | Specific Heat Capacity | Thermal Conductivity | Thermal Expansion |
Value | 400 J/g | 180 °C | 650 °C | 640 °C | 900 J/kg-K | 180W/m-K | 23 µm/m-K |
3003 Aluminum Roofing Sheet Application
It is suitable for industrial and civil buildings, warehouses, special buildings, roofs, walls, internal and external wall decorations of large-span steel structures.
3003 Corrugated Aluminum Sheet Packing and Loading
1.Surface with blue PE films or paper-interleaved.
2.Packing: Export wooden pallet packing suitable to prevent moisture and safe for ocean delivery.
3.For FCL 1 x 20GP can load approx 20MT. For LCL 1MT-10MT
3003 Corrugated Aluminum Sheet Manufacturer
We are a 3003 aluminum roofing sheet manufacturer from China. We supply 3003 H14 roofing sheets and 3003 H24 corrugated aluminum sheet for sale. We can customize it according to your needs.Kefio Aluminum manufacturers have been successful in Southeast Asia, the Middle East, Africa, and South America, such as the Nigeria,Philippines,Indonesia, Mozambique,Ecuador, UAE, etc…
Get Latest Price and Detail
