3003 H14 H24 Aluminum coil roll for sale
Type: 3003 Aluminum Coil
Price Range: $2,950-3,050
Delivery Time: 5-7 working days
Surface Treatment: Mill Finish
Thickness: 0.2-8mm
Standard width: 1000mm,1200mm,1220mm,1250mm,1500mm
Packing: 1x20FCL can load 18-20Tons
Description
3003 aluminum alloy is the most widely used of all aluminum alloys.It is essentially commercially pure aluminum with the addition of manganese which increases the strength some 20%. It has excellent work-ability, weld ability and resistance to corrosion. It may be deep drawn or spun, brazed or welded.

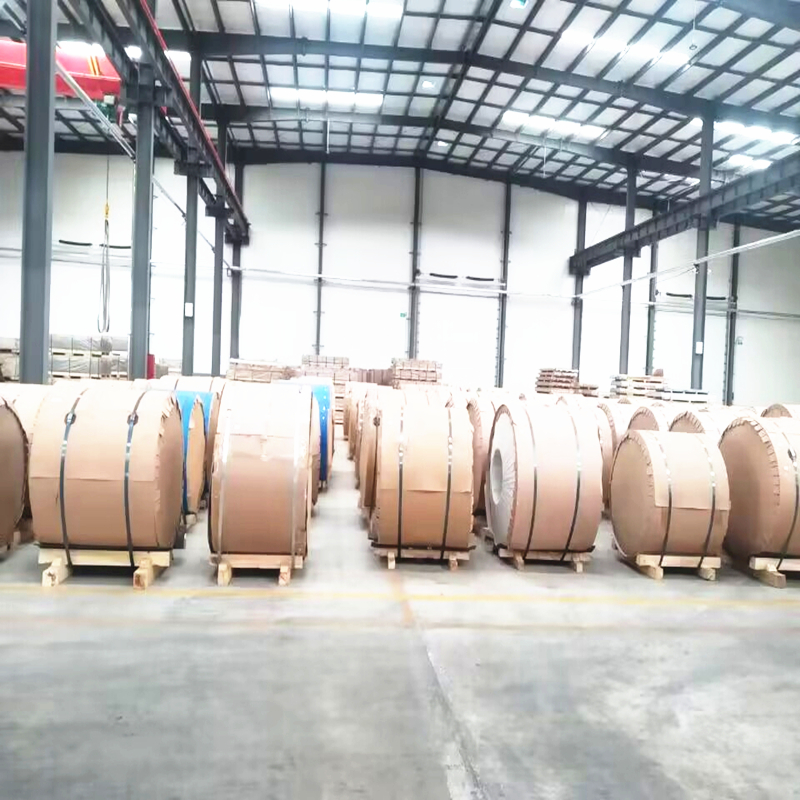

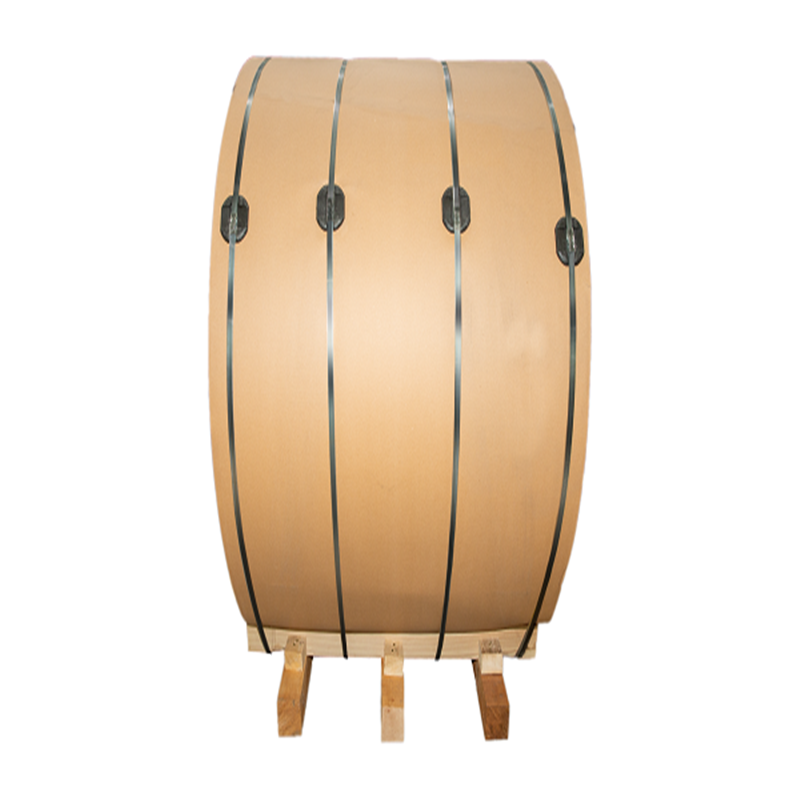

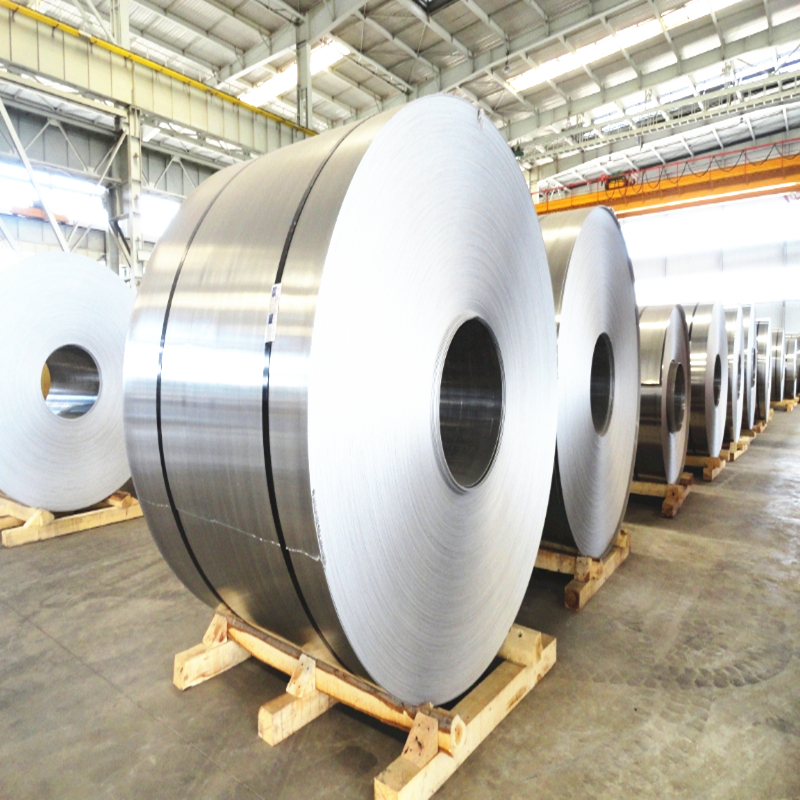

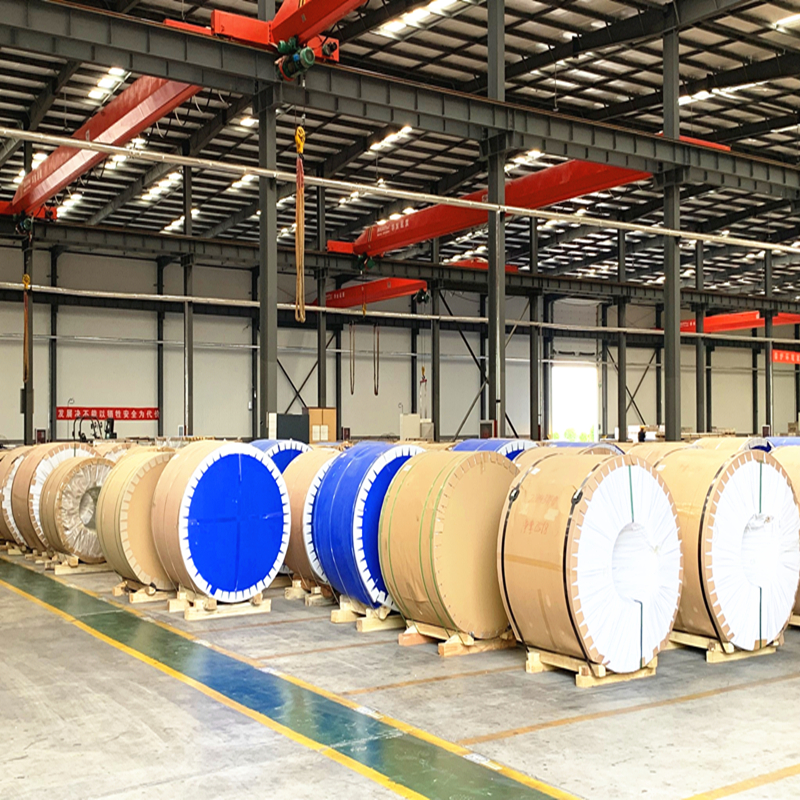

3003 Aluminum Coil Images
_20240217165213A073.jpg)
3003 Aluminum Coils Specifications
Aluminum Alloy:3003
Alloy Designations: 3003,AlMn1Cu,3.0517, A93003,A-M1,EN AW-3003
Temper: O, H12, H14, H16, H18, H22, H24, H26, H28
Surface Treatment: Mill Finish
Surface Protection: Paper-interleaved, blue PVC films
Thickness: 0.-8.0mm
Width: 600-2,600mm
Packaging: Standard seaworthy export packing;
MOQ: 1Ton per size, total 20Tons for one order
Standard: GB/T3880, ASTM B209, EN 485
3003 Al-Mn Aluminum Characteristics for guidance only)
3003 Aluminum Chemical Compositions | |||||||||
Element | Manganese (Mn) | Iron (Fe) | Chromium (Cr) | Copper (Cu) | Magnesium (Mg) | Silicon (Si) | Zinc (Zn) | Titanium (Ti) | Aluminium (Al) |
Percentage % | 1.0-1.5 | 0.0-0.70 | - | 0.05-0.20 | - | 0.0-0.95 | 0.0-0.1 | - | Remainder |
3003 Aluminum Mechanical Properties | ||||||||
Property | (UTS)Tensile Strength
| (Proof)Yield Strength | Elongation at Break | Shear Modulus | Shear Strength | Elastic Modulus
| Fatigue Strength | Poisson’s Ratio |
Value | 110-240 MPa | 40-210 MPa | 1.1-28 % | 26 GPa | 68-130 MPa | 70 GPa | 39-90MPa | 0.33 |
3003 Aluminum Thermal Properties | |||||||
Property | Latent Heat of Fusion | Maximum Temperature: Mechanical
| Melting Completion (Liquidus) | Melting Onset (Solidus) | Specific Heat Capacity | Thermal Conductivity | Thermal Expansion |
Value | 400 J/g | 180 °C | 650 °C | 640 °C | 900 J/kg-K | 180W/m-K | 23 µm/m-K |
3003 Aluminum Coil Application
Drawn and spun parts, duct-work, general sheet metal work, cooking utensils, awnings and sidings, decorative trim, garage doors, chemical equipment, pressure vessels, heat ex-changers, and construction or building, etc.
3003 Aluminum Coil Packing and Loading
1.Surface with blue PE films or paper-interleaved.
2.Packing: Export wooden pallet packing suitable to prevent moisture and safe for ocean delivery.
3.For FCL 1 x 20GP can load approx 20MT. For LCL 1MT-10MT
3003 Aluminum Coil Manufacturer
We are a 3003 aluminum coil manufacturer from China. We supply 3003 H14 coils and 3003 H24 aluminum roll for sale. We can customize it according to your needs.Kefio Aluminum manufacturers have been successful in Southeast Asia, the Middle East, Africa, and South America, such as the Philippines,Indonesia, Mozambique,Ecuador, UAE, etc…
