3003 H24 Aluminum Diamond Tread Sheet Pattern For Sale
Type: 3003 Aluminum diamond tread sheet
Price Range: $3,000-3,150
Delivery Time: 5-7 working days
Surface Treatment: Mill Finish
Design: 5 Bar,Diamond,Pointer,Lentil,Pattern
Standard size: 1220x2440mm,1250x2500mm
Packing: 1x20FCL can load 18-20Tons
Description
Best Aluminum diamond tread pattern plate supplier from KEFIO
Aluminum diamond tread pattern plate
Get ready for ultimate safety and durability with Kefio's aluminum tread plates! Our aluminum tread plates provide an anti-slip surface for ramps, flooring, walkways, stair nosing, and so on. Its superior strength makes it ideal to withstand high foot traffic and its durability ensures it keeps your floors safe for many years.

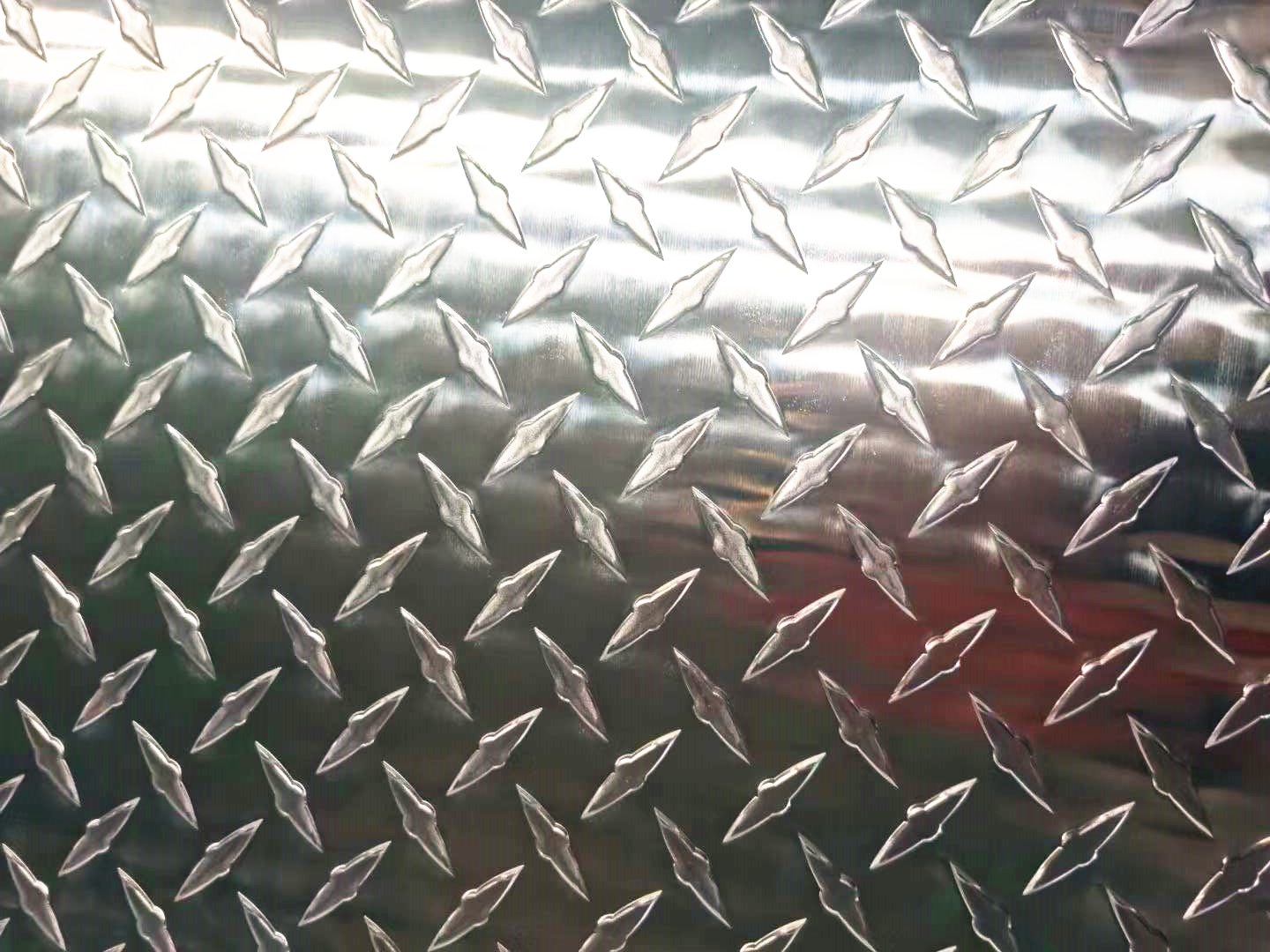

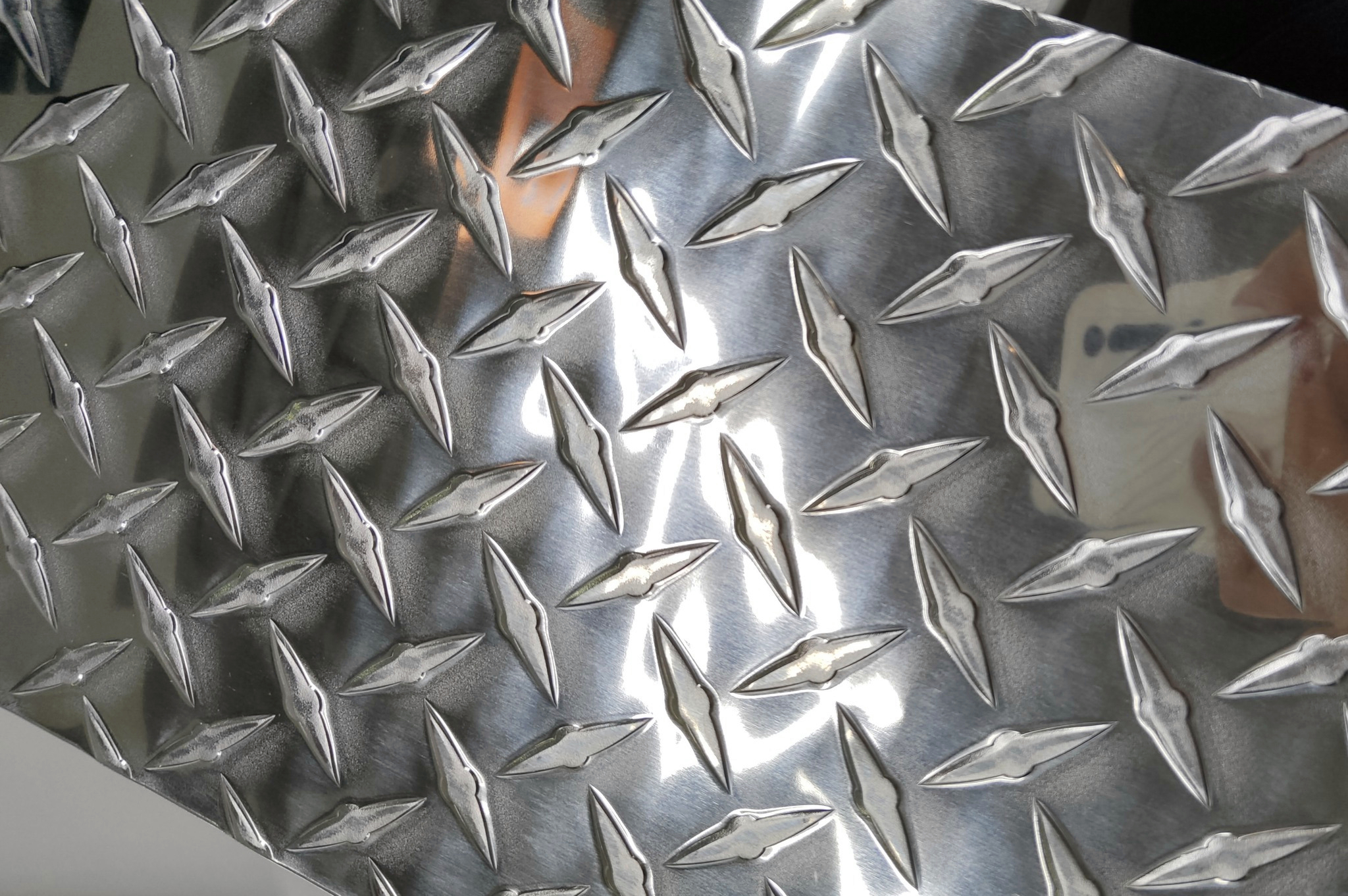

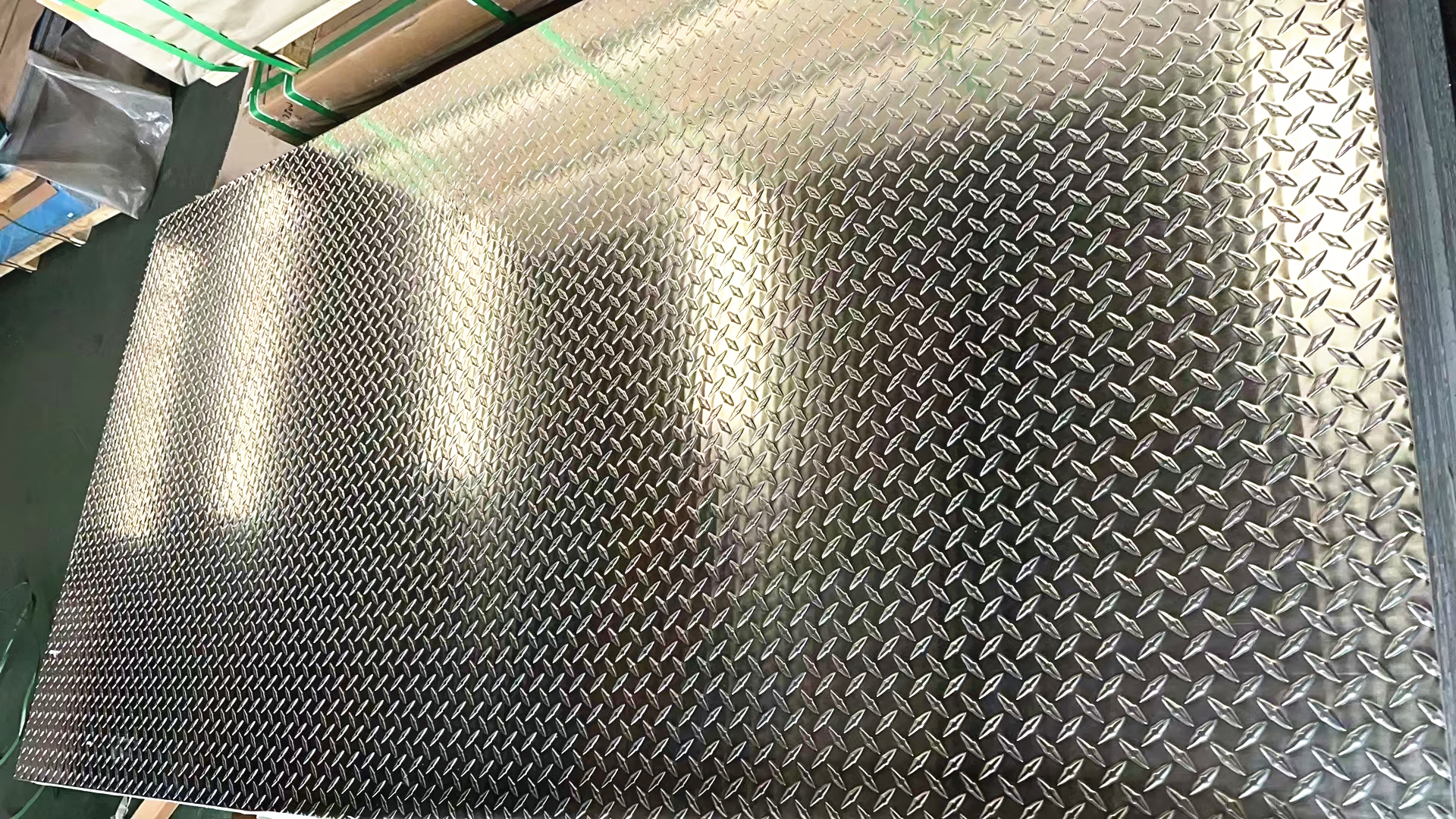

3003 Aluminum Diamond Tread Pattern Plate Images
_20240202152949A027.jpg)
3003 Aluminum Diamond Tread Pattern Sheet Specifications
Aluminum Alloy:3003
Alloy Designations: 3003,AlMn1Cu,3.0517, A93003,A-M1,EN AW-3003
Temper: O, H12, H14, H16, H18, H22, H24, H26, H28
Surface Treatment: Mill Finish
Surface Protection: Paper-interleaved, blue PVC films
Thickness: 0.3-6.0mm
Width: 600-2,200mm
Length: 800-11,000mm
Size: 1000x2000mm, 4x8ft, 1200x2400mm, 1219x2438mm, 1220x2440mm, 1250x2500mm, 1500x3000mm, 1524x3048mm;
Packaging: Standard seaworthy export packing;
MOQ: 1Ton per size, total 20Tons for one order
Standard: GB/T3880, ASTM B209, EN 485
3003 Al-Mn Aluminum Characteristics for guidance only)
3003 Aluminum Chemical Compositions | |||||||||
Element | Manganese (Mn) | Iron (Fe) | Chromium (Cr) | Copper (Cu) | Magnesium (Mg) | Silicon (Si) | Zinc (Zn) | Titanium (Ti) | Aluminium (Al) |
Percentage % | 1.0-1.5 | 0.0-0.70 | - | 0.05-0.20 | - | 0.0-0.95 | 0.0-0.1 | - | Remainder |
3003 Aluminum Mechanical Properties | ||||||||
Property | (UTS)Tensile Strength
| (Proof)Yield Strength | Elongation at Break | Shear Modulus | Shear Strength | Elastic Modulus
| Fatigue Strength | Poisson’s Ratio |
Value | 110-240 MPa | 40-210 MPa | 1.1-28 % | 26 GPa | 68-130 MPa | 70 GPa | 39-90MPa | 0.33 |
3003 Aluminum Thermal Properties | |||||||
Property | Latent Heat of Fusion | Maximum Temperature: Mechanical
| Melting Completion (Liquidus) | Melting Onset (Solidus) | Specific Heat Capacity | Thermal Conductivity | Thermal Expansion |
Value | 400 J/g | 180 °C | 650 °C | 640 °C | 900 J/kg-K | 180W/m-K | 23 µm/m-K |
3003 Aluminum Diamond Tread Pattern Features
1. Good anti-oxidation effect can make the life of the aluminum grating longer.
2. Easy to clean, the surface of the aluminum grid plate is not easy to be stained, just wipe it gently with a neutral detergent.
3. Good corrosion resistance and excellent weld-ability, can be used for ship anti-skid plates, and can be used for a long time in the harsh environment of the ocean.
3003 Aluminum Diamond Tread Pattern Application
1. Lighting accessories, solar reflectors, building appearance
2. Interior decoration: ceiling, wall, furniture, cabinets, etc.
3. Anti-slip applications such as elevators, rails, ships, and medical equipment
4. Car interior and exterior decoration
5. Household appliances, refrigerators, microwave ovens, audio equipment, etc.
3003 Aluminum Diamond Tread Plate Package Dimension For Reference Only
For Flat Sheet&Plate (Based on density of 2,700 kg/m3) | |||
Thickness (mm)&Standard Size | Weight (Kg) | Estimated(Pcs) | Weight/Pcs |
2x1000x2000 | 1,000 | 63 PCS | 15.87 kgs |
2x1220x2440 | 1,000 | 42 PCS | 23.81 kgs |
2x1250x2500 | 1,000 | 40 PCS | 25.00 kgs |
2x1500x3000 | 1,000 | 28 PCS | 35.71 kgs |
3003 Aluminum Diamond Tread Plate Packing and Loading
1.Surface with blue PE films or paper-interleaved.
2.Packing: Export wooden pallet packing suitable to prevent moisture and safe for ocean delivery.
3.For FCL 1 x 20GP can load approx 20MT. For LCL 1MT-10MT
3003 Aluminum Diamond Tread Plate Manufacturer
We are a 3003 H14 aluminum checker diamond sheet manufacturer from China. We supply 3003 H24 aluminum tread diamond plate for sale. We can customize it according to your needs.
Kefio Alum manufacturers have been successful in Southeast Asia, the Middle East, Africa, and South America, such as the Philippines,Indonesia, Mozambique,Ecuador, UAE, Fiji,etc…
