5005 Aluminum flat smooth plain sheet plate
Type: 5005 Aluminum Flat Sheet
Price Range: $2,950-3,100
Delivery Time: 5-7 working days
Surface Treatment: Mill Finish
Packing: 1x20FCL can load 18-20Tons
Description
5005 aluminium alloy is a medium-strength aluminium–magnesium alloy with good resistance to atmospheric corrosion. It can attain moderate to high strength by cold working, and has relatively high welded strength compared to other aluminium alloy families.

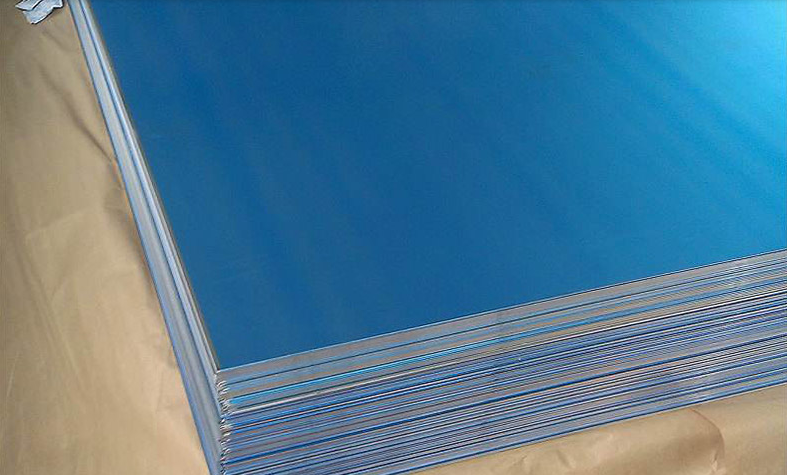

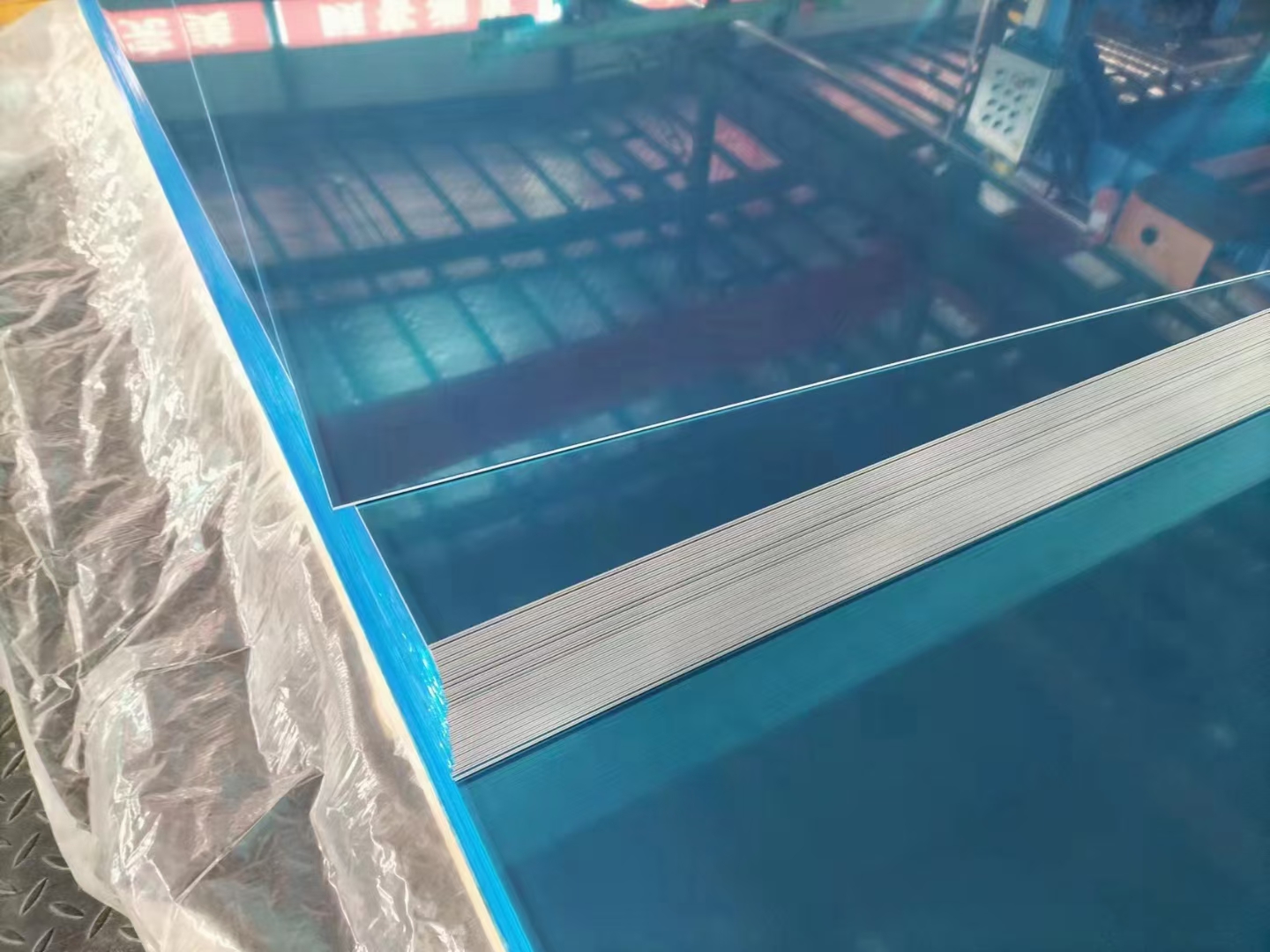

5005 Aluminum Flat Sheet Images
5005 Aluminum smooth Sheet Specifications
Aluminum Alloy:5005
Alloy Designations:5005, AlMg1(B), N41, A95005)
Temper: O, H12, H14,H22, H24, H32, H112
Surface Treatment: Mill Finish
Surface Protection: Paper-interleaved, blue PVC films
Thickness: 0.3-6.0mm
Width: 600-2,200mm
Length: 800-11,000mm
Size: 4x8ft, 1200x2400mm, 1219x2438mm, 1220x2440mm, 1250x2500mm, 1500x3000mm, 1524x3048mm;
Packaging: Standard seaworthy export packing;
MOQ: 1Ton per size, total 20Tons for one order
Standard: GB/T3880, ASTM B209, EN 485
5005 Al-Mg Aluminum Characteristics for guidance only)
5005 Aluminum Chemical Compositions | |||||||||
Element | Manganese (Mn) | Iron (Fe) | Chromium (Cr) | Copper (Cu) | Magnesium (Mg) | Silicon (Si) | Zinc (Zn) | Titanium (Ti) | Aluminium (Al) |
Percentage % | 0.0-0.2 | 0.0-0.7 | 0.0-0.15 | 0.0-0.2 | 0.5-1.1 | 0.0-0.3 | 0.0-0.25 | - | Remainder |
5005 Aluminum Mechanical Properties | ||||||||
Property | (UTS)Tensile Strength
| (Proof)Yield Strength | Elongation at Break | Shear Modulus | Shear Strength | Elastic Modulus
| Fatigue Strength | Poisson’s Ratio |
Value | 190-320 MPa | 75-280 MPa | 1.1-22% | 26 GPa | 120-180 MPa | 68 GPa | 66-140MPa | 0.33 |
5005 Aluminum Thermal Properties | |||||||
Property | Latent Heat of Fusion | Maximum Temperature: Mechanical
| Melting Completion (Liquidus) | Melting Onset (Solidus) | Specific Heat Capacity | Thermal Conductivity | Thermal Expansion |
Value | 400 J/g | 180 °C | 650 °C | 630 °C | 900 J/kg-K | 200W/m-K | 24 µm/m-K |
5005 Aluminum Plain Sheet Application
Curtain wall, shipping building, auto inner plate, tank car, oil tank, storage tank, marine facilities etc.
5005 Aluminum Flat Sheet Package Dimension For Reference Only
For Flat Sheet&Plate (Based on density of 2,700 kg/m3) | |||
Thickness (mm)&Standard Size | Weight (Kg) | Estimated(Pcs) | Weight/Pcs |
3x1000x2000 | 1,000 | 61 PCS | 16.39 kgs |
3x1220x2440 | 1,000 | 41 PCS | 24.39 kgs |
3x1250x2500 | 1,000 | 39 PCS | 25.64 kgs |
3x1500x3000 | 1,000 | 27 PCS | 37.04 kgs |
5005 Aluminum Sheet Packing and Loading
1.Surface with blue PE films or paper-interleaved.
2.Packing: Export wooden pallet packing suitable to prevent moisture and safe for ocean delivery.
3.For FCL 1 x 20GP can load approx 20MT. For LCL 1MT-10MT
5005 Aluminum Smooth Sheet Manufacturer
We are a 5005 aluminum smooth sheet manufacturer from China. We supply 5005-O smooth sheets and 5005-H32 aluminum flat sheets for sale. We can customize it according to your needs.
Kefio Alum manufacturers have been successful in Southeast Asia, the Middle East, Africa, and South America, such as the Philippines,Indonesia, Mozambique,Ecuador, UAE,Chile, Peru, etc…
