5052 Aluminum flat smooth plain sheet plate
Type: 5052 Aluminum Plain Flat Sheet
Price Range: $2,950-3,100
Delivery Time: 5-7 working days
Surface Treatment: Mill Finish
Packing: 1x20FCL can load 18-20Tons
Description
5052 is extremely resistant to corrosion, particularly that of a marine environment. It also possesses a high magnesium content, making it the highest strength non-heat treatable alloy available. It has good finishing characteristics, and excellent work-ability. It is easily drawn or welded, and may be formed into intricate shapes.

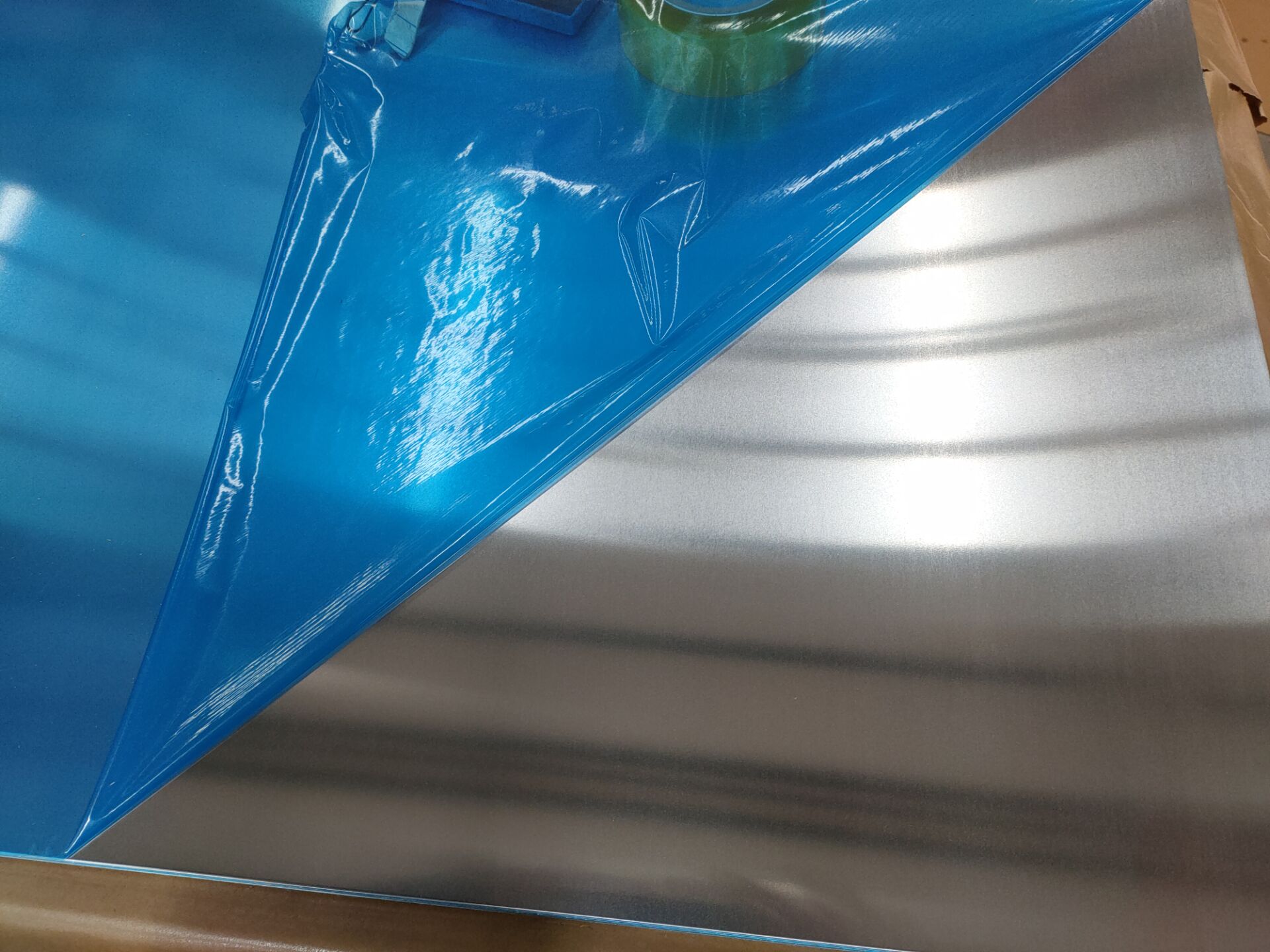

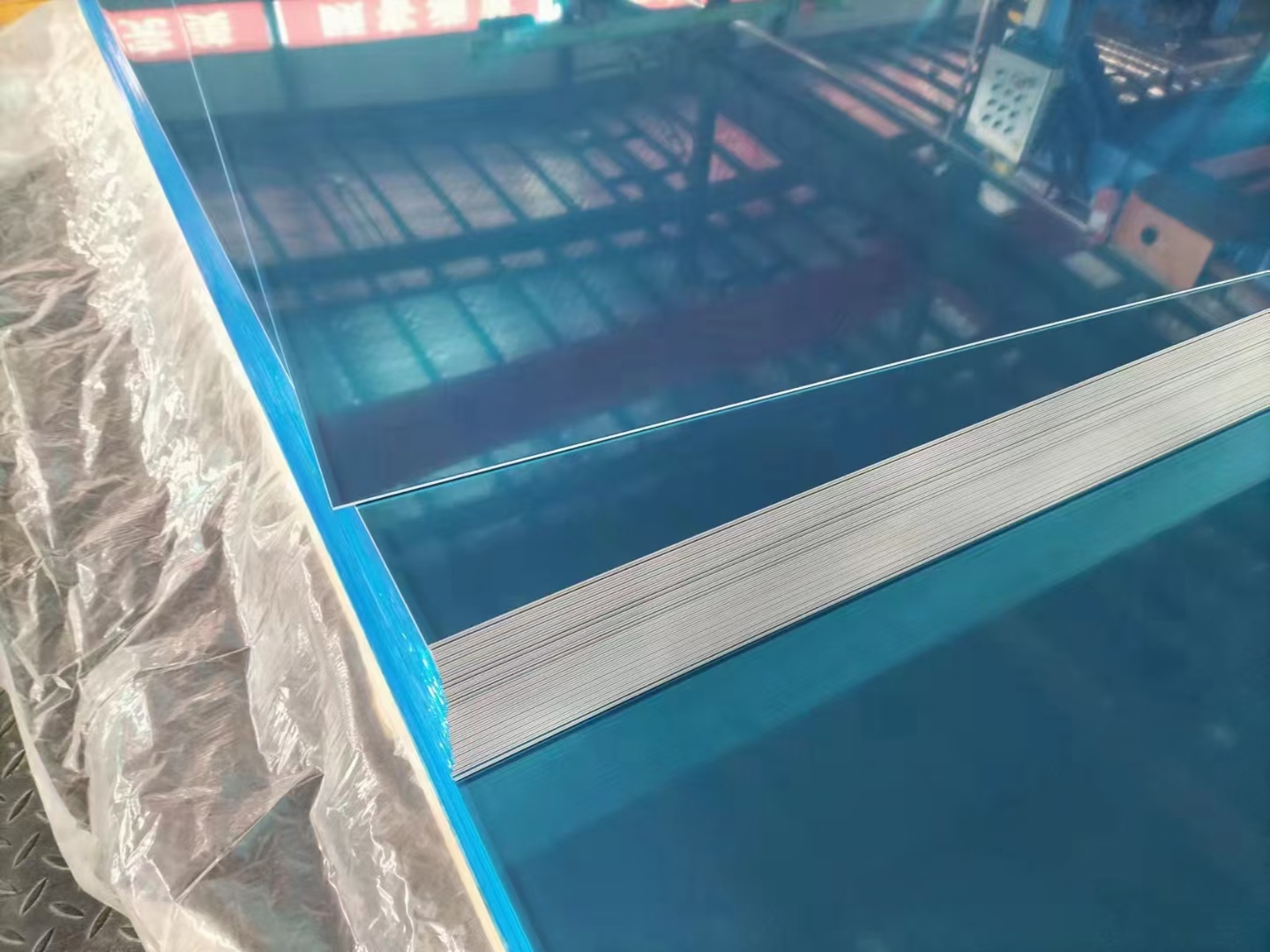

5052 Aluminum Flat Sheet Images
5052 Aluminum smooth Sheet Specifications
Aluminum Alloy:5052
Alloy Designations: 5052, AlMg2.5, 3.3523, A95052, A-G2,5C, EN AW-5052
Temper: O, H12, h22, H24, H32, H111, H112
Surface Treatment: Mill Finish
Surface Protection: Paper-interleaved, blue PVC films
Thickness: 0.3-6.0mm
Width: 600-2,200mm
Length: 800-11,000mm
Size: 4x8ft, 1200x2400mm, 1219x2438mm, 1220x2440mm, 1250x2500mm, 1500x3000mm, 1524x3048mm;
Packaging: Standard seaworthy export packing;
MOQ: 1Ton per size, total 20Tons for one order
Standard: GB/T3880, ASTM B209, EN 485
5052 Al-Mg Aluminum Characteristics for guidance only)
5052 Aluminum Chemical Compositions | |||||||||
Element | Manganese (Mn) | Iron (Fe) | Chromium (Cr) | Copper (Cu) | Magnesium (Mg) | Silicon (Si) | Zinc (Zn) | Titanium (Ti) | Aluminium (Al) |
Percentage % | 0.0-0.1 | 0.0-0.4 | 0.15-0.35 | 0.0-0.1 | 2.2-2.8 | 0.0-0.25 | 0.0-0.1 | - | Remainder |
5052 Aluminum Mechanical Properties | ||||||||
Property | (UTS)Tensile Strength
| (Proof)Yield Strength | Elongation at Break | Shear Modulus | Shear Strength | Elastic Modulus
| Fatigue Strength | Poisson’s Ratio |
Value | 190-320 MPa | 75-280 MPa | 1.1-22% | 26 GPa | 120-180 MPa | 68 GPa | 66-140MPa | 0.33 |
5052 Aluminum Thermal Properties | |||||||
Property | Latent Heat of Fusion | Maximum Temperature: Mechanical
| Melting Completion (Liquidus) | Melting Onset (Solidus) | Specific Heat Capacity | Thermal Conductivity | Thermal Expansion |
Value | 400 J/g | 190 °C | 650 °C | 610 °C | 900 J/kg-K | 140W/m-K | 24 µm/m-K |
5052 Aluminum Plain Sheet Application
Sheet metal parts, aircraft components and tubes, small boats, tank-age, bus and truck bodies, kitchen cabinets, cookware, appliances, fencing, fan blades, food-processing equipment, ladders, railing, frames,etc.
5052 Aluminum Plain Sheet Package Dimension For Reference Only
For Flat Sheet&Plate (Based on density of 2,700 kg/m3) | |||
Thickness (mm)&Standard Size | Weight (Kg) | Estimated(Pcs) | Weight/Pcs |
3x1000x2000 | 1,000 | 61 PCS | 16.39 kgs |
3x1220x2440 | 1,000 | 41 PCS | 24.39 kgs |
3x1250x2500 | 1,000 | 39 PCS | 25.64 kgs |
3x1500x3000 | 1,000 | 27 PCS | 37.04 kgs |
5052 Aluminum Flat Sheet Packing and Loading
1.Surface with blue PE films or paper-interleaved.
2.Packing: Export wooden pallet packing suitable to prevent moisture and safe for ocean delivery.
3.For FCL 1 x 20GP can load approx 20MT. For LCL 1MT-10MT
5052 Aluminum Smooth Sheet Manufacturer
We are a 5052 aluminum smooth sheet manufacturer from China. We supply 5052 H32 smooth sheets and 5052-O aluminum flat sheets for sale. We can customize it according to your needs.
Kefio Alum manufacturers have been successful in Southeast Asia, the Middle East, Africa, and South America, such as the Philippines,Indonesia, Mozambique,Chile, Peru,Ecuador, UAE, Qatar, etc…
