5083 Aluminum flat smooth plain sheet plate
Type: 5083 Aluminum Smooth Sheet
Price Range: $3,100-3,500
Delivery Time: 5-7 working days
Surface Treatment: Mill Finish
Packing: 1x20FCL can load 18-20Tons
Description
5083 aluminum sheet belongs to Al-Mg series alloy, has good anti-rust function and can adapt to the corrosion of marine climate, is highly resistant to attack by both seawater and industrial chemical environments. And also retains exceptional strength after welding.

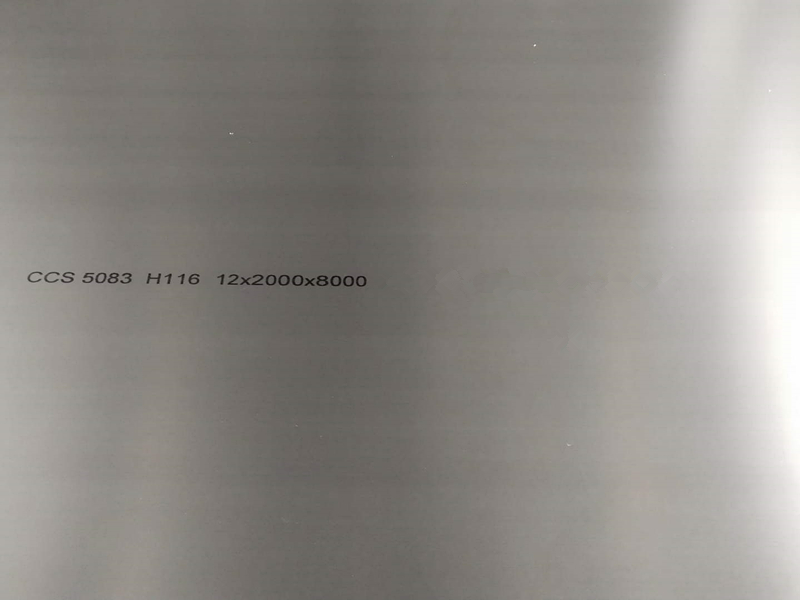

5083 Aluminum Flat Sheet Images
5083 Aluminum smooth Sheet Specifications
Aluminum Alloy:5083
Alloy Designations:5083, AlMg4.5Mn0.7, 3.3547,BS N8, A95083,A-G4,5Mn, EN AW-5083
Temper: O, H22, H24, H111, H112
Surface Treatment: Mill Finish
Surface Protection: Paper-interleaved, blue PVC films
Thickness: 0.3-6.0mm
Width: 600-2,200mm
Length: 800-11,000mm
Size: 1220x2440mm, 1250x2500mm, 1500x3000mm, 2000x4000mm,2000x6000mm,2000x8000mm
Packaging: Standard seaworthy export packing;
MOQ: 1Ton per size, total 20Tons for one order
Standard: GB/T3880, ASTM B209, EN 485
5083 Al-Mg Aluminum Characteristics for guidance only
5083 Aluminum Chemical Compositions | |||||||||
Element | Manganese (Mn) | Iron (Fe) | Chromium (Cr) | Copper (Cu) | Magnesium (Mg) | Silicon (Si) | Zinc (Zn) | Titanium (Ti) | Aluminium (Al) |
Percentage % | 0.4-1.0 | 0.0-0.4 | 0.05-0.25 | 0.0-0.1 | 4.0-4.9 | 0.0-0.4 | 0.0-0.25 | - | Remainder |
5083 Aluminum Mechanical Properties | ||||||||
Property | (UTS)Tensile Strength
| (Proof)Yield Strength | Elongation at Break | Shear Modulus | Shear Strength | Elastic Modulus
| Fatigue Strength | Poisson’s Ratio |
Value | 290-390 MPa | 110-340 MPa | 1.1-17% | 26 GPa | 170-220 MPa | 68 GPa | 93-190MPa | 0.33 |
5083 Aluminum Thermal Properties | |||||||
Property | Latent Heat of Fusion | Maximum Temperature: Mechanical
| Melting Completion (Liquidus) | Melting Onset (Solidus) | Specific Heat Capacity | Thermal Conductivity | Thermal Expansion |
Value | 400 J/g | 190 °C | 640 °C | 580 °C | 900 J/kg-K | 120W/m-K | 24 µm/m-K |
5083 Aluminum Plain Sheet Application
This material is used for pressure vessels, tip truck bodies, rail cars,ship building, vehicle bodies and mine skips,cages.
5083 Aluminum Flat Sheet Package Dimension For Reference Only
For Flat Sheet&Plate (Based on density of 2,700 kg/m3) | |||
Thickness (mm)&Standard Size | Weight (Kg) | Estimated(Pcs) | Weight/Pcs |
5x2000x4000mm | 1,000 | 9 PCS | 111.11 kgs |
5x2000x6000mm | 1,000 | 6 PCS | 166.67 kgs |
5x1250x2500 | 1,000 | 23 PCS | 43.48 kgs |
5x1500x3000 | 1,000 | 16 PCS | 62.50 kgs |
5083 Aluminum Smooth Sheet Packing and Loading
1.Surface with blue PE films or paper-interleaved.
2.Packing: Export wooden pallet packing suitable to prevent moisture and safe for ocean delivery.
3.For FCL 1 x 20GP can load approx 20MT. For LCL 1MT-10MT
5083 Aluminum Smooth Sheet Manufacturer
We are a 5083 aluminum smooth sheet manufacturer from China. We supply 5052 H111 smooth sheets and 5052 H116 aluminum flat sheets for sale. We can customize it according to your needs.
Kefio Alum manufacturers have been successful in Southeast Asia, the Middle East, Africa, and South America, such as the Philippines,Indonesia, Mozambique,Ecuador, Peru, Chile,UAE, Qatar, Germany,Fiji,etc
