6061 Aluminum Flat Bar For Sale
Type: 6061 Aluminum Flat Bar
Price Range: $3,200-3,500
Delivery Time: 5-7 working days
Surface Treatment: Mill Finish
Production Process: Extruded
Description
Kefio aluminum company supply high-quality aluminum flat bars have an excellent finish, good strength, and average formability, perfect for your industrial and structural applications. Featuring the greatest reliability, durability, and a wide range of mechanical properties.

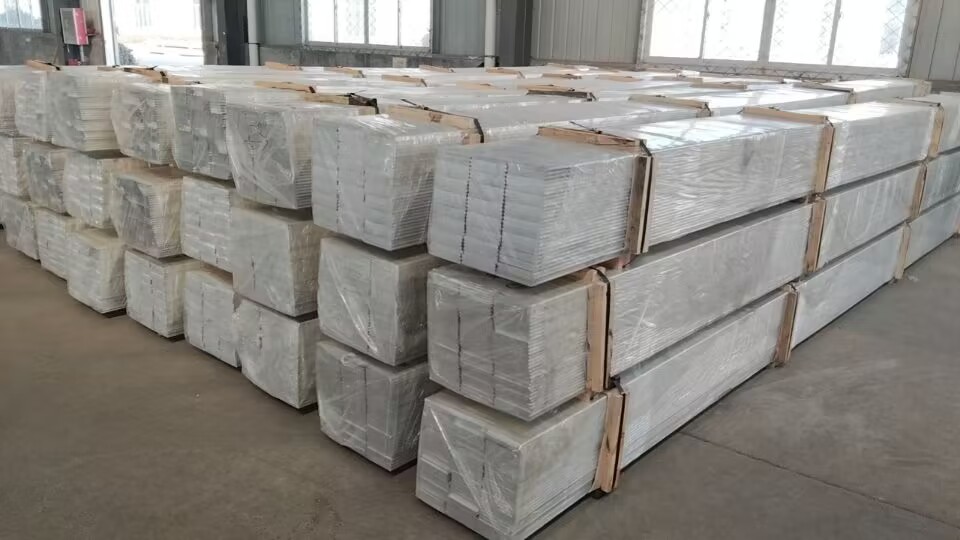

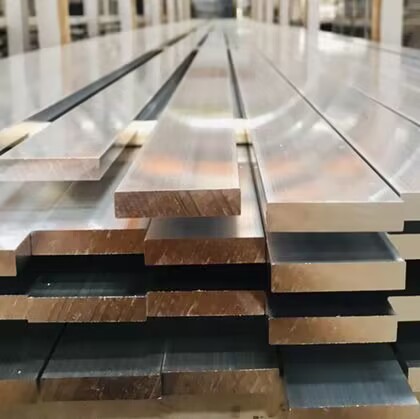

6061 Aluminum Flat Bar Images
6061 Aluminum Flat Bar Specifications
Aluminum Alloy:6061
Alloy Designations:6061 AlMg1SiCu, 3.3214, BS H20, A96061,A-G1SUC,EN AW-6061
Temper: T5,T6, T651
Surface Treatment: Mill Finish
Surface Protection: Paper-interleaved
Width:10-600mm
Thickness:3-120mm
Length: 1,000-6,000mm
Standard length Size: 3,000mm, 6,000mm
Packaging: Standard seaworthy export packing;
MOQ: 1Ton per size, total 20Tons for one order
Standard: GB/T6892, ASTM B221, EN 754
6061 Al-Mg-Si Aluminum Characteristics for guidance only
6061 Aluminum Chemical Compositions | |||||||||
Element | Manganese (Mn) | Iron (Fe) | Chromium (Cr) | Copper (Cu) | Magnesium (Mg) | Silicon (Si) | Zinc (Zn) | Titanium (Ti) | Aluminium (Al) |
Percentage % | 0.0-0.15 | 0.0-0.7 | 0.04-0.35 | 0.15-0.4 | 0.8-1.2 | 0.4-0.8 | 0.0-0.25 | 0.0-0.15 | Remainder |
6061 Aluminum Mechanical Properties | ||||||||
Property | (UTS)Tensile Strength
| (Proof)Yield Strength | Elongation at Break | Shear Modulus | Shear Strength | Elastic Modulus
| Fatigue Strength | Poisson’s Ratio |
Value | 130-410 MPa | 76-370 MPa | 3.4-20% | 26 GPa | 84-210 MPa | 69 GPa | 58-110MPa | 0.33 |
6061 Aluminum Thermal Properties | |||||||
Property | Latent Heat of Fusion | Maximum Temperature: Mechanical
| Melting Completion (Liquidus) | Melting Onset (Solidus) | Specific Heat Capacity | Thermal Conductivity | Thermal Expansion |
Value | 400 J/g | 170 °C | 650 °C | 580 °C | 900 J/kg-K | 170W/m-K | 24 µm/m-K |
6061 Aluminum Flat Bar Application
Good strength, corrosion resistance and plasticity, and are suitable for applications requiring strength and corrosion resistance.Such as, aerospace, auto parts, bicycle frames, building doors and windows, furniture manufacturing, decorative materials,aircraft parts, engine parts.
6061 Aluminum Flat Bar Features
1.Lightweight, Aesthetic appeal
2.Corrosion resistance
3.Excellent Thermal Conductivity and Machinability and Recyclability
6061 Aluminum Flat Bar size (Just for reference)
Thickness(mm) | Width(mm) | Length (mm) |
3 | 20 | 3000mm |
3 | 40 | 3000mm |
3 | 50 | 3000mm |
2 | 25 | 6000mm |
4 | 10 | 6000mm |
5 | 50 | 6000mm |
6061 Aluminum Flat Bar Packing and Loading
1.Surface with blue PE films or paper-interleaved.
2.Packing: Export wooden pallet packing suitable to prevent moisture and safe for ocean delivery.
3.For FCL 1 x 20GP can load approx 20MT. For LCL 1MT-10MT
6061 Aluminum Flat Bar Manufacturer
We are a 6061 aluminum Flat bar manufacturer from China. We supply 6061T6 Flat bar and 6061 T5 aluminum extruded bar for sale. We can customize it according to your needs.
Kefio Alum manufacturers have been successful in Southeast Asia, the Middle East, Africa, and South America, such as the Philippines,Indonesia, Mozambique,Ecuador, UAE, etc…
Get Latest Price and Detail
