6061 Aluminum Rectangle Tube Pipe Tubing For Sale
Type: 6061 Aluminum Rectangle Tube
Price Range: $3,300-3,700
Delivery Time: 5-7 working days
Production Process: Extruded
Surface Treatment: Mill Finish
Surface Protection: Paper interleaved, PVC filmed or Plastic bag sleeved
Description
Kefio Aluminum provide strong and lightweight aluminum rectangle tubes/ tubing for your project! A versatile selection of sizes and shapes will suit your need. These corrosion-resistant aluminum material ensures long-term performance and durability for a variety of applications such as structural, fencing, handrails, and architectural purposes.

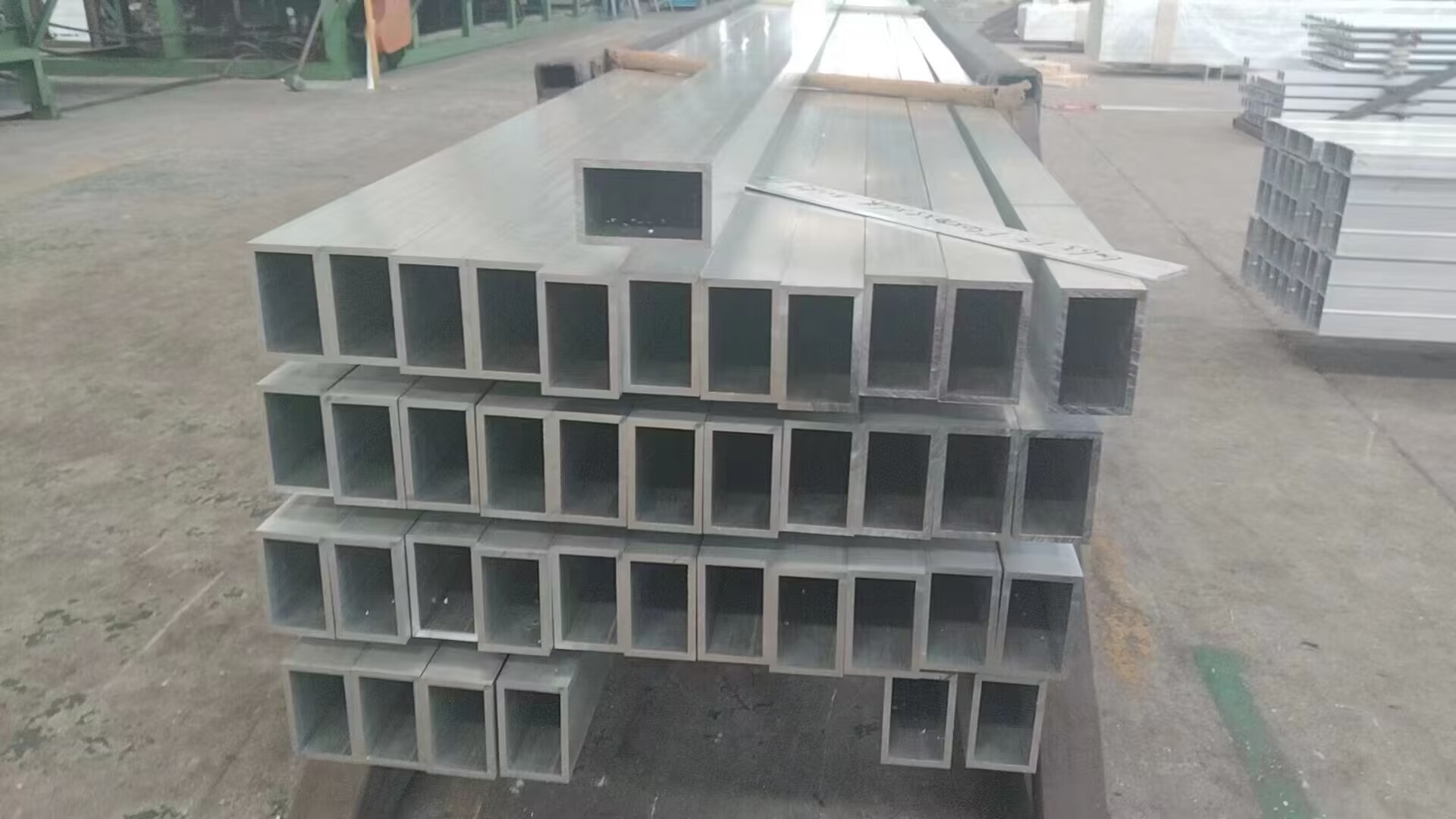

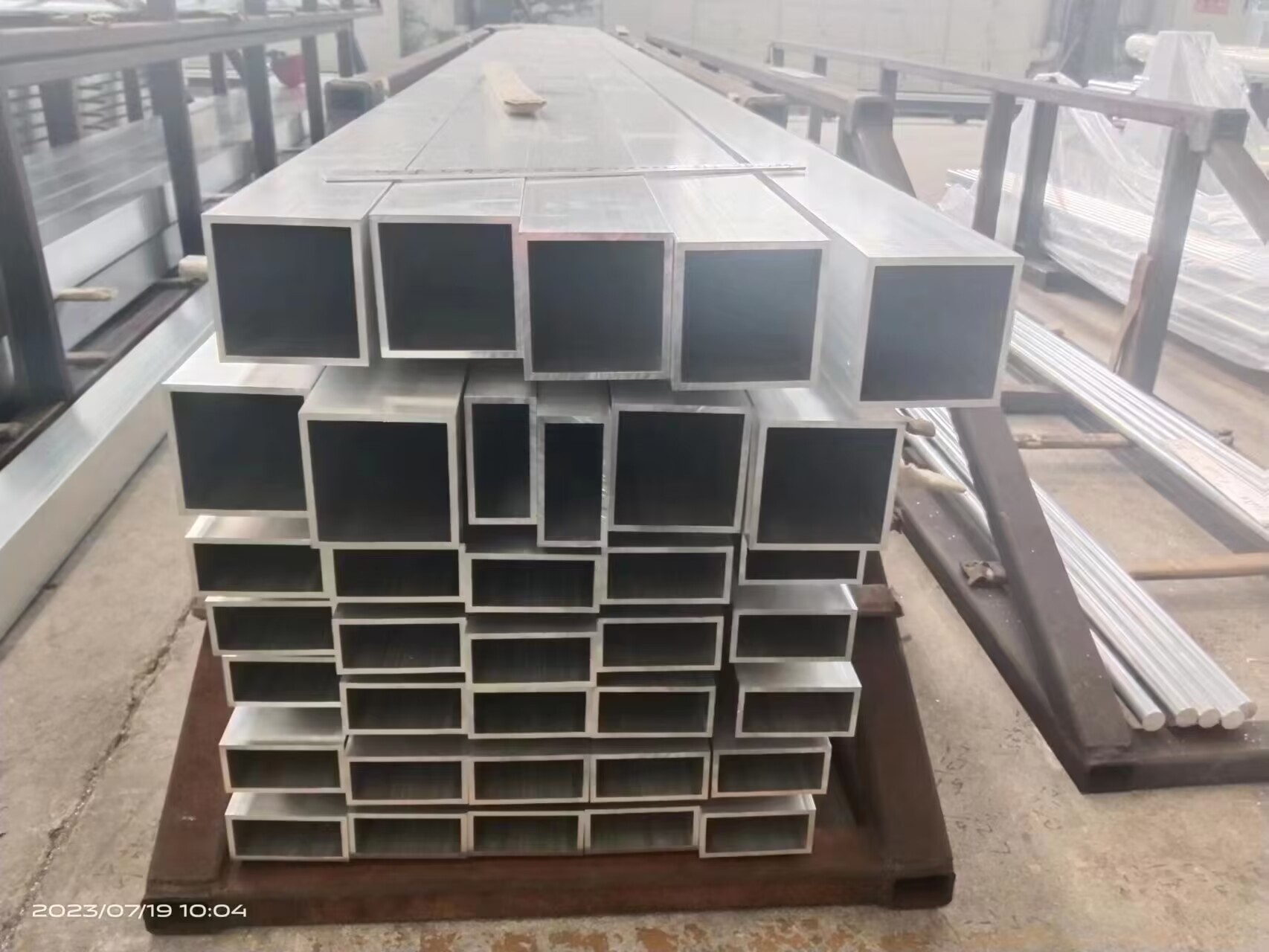

6061 Aluminum Rectangle Tube/Tubing Images
6061 Aluminum Rectangle Tube/Tubing Specifications
Aluminum Alloy:6061
Alloy Designations:6061 AlMg1SiCu, 3.3214, BS H20, A96061,A-G1SUC,EN AW-6061
Temper: T4,T5,T6, T651
Surface Treatment: Mill Finish
Surface Protection: Paper-interleaved
Thickness: 1-40mm
Diameter: 10x20-200x250mm
Length: 1,000-6,000mm
Packaging: Standard seaworthy export packing;
MOQ: 1Ton per size, total 20Tons for one order
Standard: GB/T4437, ASTM B211, EN 754
6061 Al-Mg-Si Aluminum Characteristics for guidance only
6061 Aluminum Chemical Compositions | |||||||||
Element | Manganese (Mn) | Iron (Fe) | Chromium (Cr) | Copper (Cu) | Magnesium (Mg) | Silicon (Si) | Zinc (Zn) | Titanium (Ti) | Aluminium (Al) |
Percentage % | 0.0-0.15 | 0.0-0.7 | 0.04-0.35 | 0.15-0.4 | 0.8-1.2 | 0.4-0.8 | 0.0-0.25 | 0.0-0.15 | Remainder |
6061 Aluminum Mechanical Properties | ||||||||
Property | (UTS)Tensile Strength
| (Proof)Yield Strength | Elongation at Break | Shear Modulus | Shear Strength | Elastic Modulus
| Fatigue Strength | Poisson’s Ratio |
Value | 130-410 MPa | 76-370 MPa | 3.4-20% | 26 GPa | 84-210 MPa | 69 GPa | 58-110MPa | 0.33 |
6061 Aluminum Thermal Properties | |||||||
Property | Latent Heat of Fusion | Maximum Temperature: Mechanical
| Melting Completion (Liquidus) | Melting Onset (Solidus) | Specific Heat Capacity | Thermal Conductivity | Thermal Expansion |
Value | 400 J/g | 170 °C | 650 °C | 580 °C | 900 J/kg-K | 170W/m-K | 24 µm/m-K |
6061 Aluminum Rectangle Tube/Tubing Application
Suitable for applications requiring strength and light weight. These alloys are widely used in aerospace, automotive industry, construction and various structures and parts requiring strength and corrosion resistance.
6061 Aluminum Rectangle Tube/TubingFeatures
1.Lightweight, Aesthetic appeal
2.Corrosion resistance
3.Excellent Thermal Conductivity and Machinability and Recyclability
6061 Aluminum Rectangle Tube/Tubing size (Just for reference)
Thickness(mm) | Diameter(mm) | Length (mm) |
2 | 20x40 | 6000mm |
3 | 20x40 | 6000mm |
2 | 25x40 | 6000mm |
3 | 25x40 | 6000mm |
3 | 25x50 | 6000mm |
3 | 50x50 | 6000mm |
3 | 40x50 | 6000mm |
3 | 40x80 | 6000mm |
6061 Aluminum Rectangle Tube/Tubing Packing and Loading
1.Surface with blue PE films or paper-interleaved.
2.Packing: Export wooden pallet packing suitable to prevent moisture and safe for ocean delivery.
3.For FCL 1 x 20GP can load approx 20MT. For LCL 1MT-10MT
6061 Aluminum Rectangle Tube/Tubing Manufacturer
We are a 6061 aluminum rectangle tube manufacturer from China. We supply 6061T6 rectangle pipe and 6061 T5 aluminum rectangle tubing for sale. We can customize it according to your needs.
Kefio Alum manufacturers have been successful in Southeast Asia, the Middle East, Africa, and South America, such as the Philippines,Indonesia, Mozambique,Ecuador, UAE,Fiji, Qatar. etc…
