6061 Aluminum Round Tube Pipe Tubing For Sale
Type: 6061 Aluminum Round Tube Pipe
Price Range: $3,300-3,500
Delivery Time: 5-7 working days
Surface Treatment: Mill Finish
Production Process: Extruded
Surface Protection: Paper interleaved, or Plastic bag sleeved
Description
Kefio aluminum round tube&pipe has excellent machinability and weldability and can be applied in the structural field. It is also a perfect material for component production used in the automotive, aerospace, and marine industries. Outshine the competition with Kefio Aluminum. Aluminum Round Tube&Pipe, a product designed to last and outperform the competition.

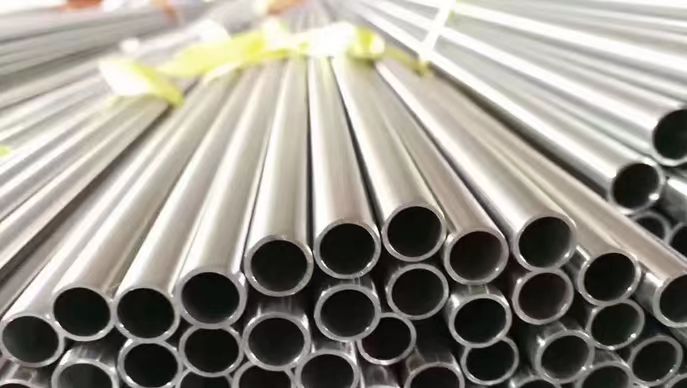

6061 Aluminum Round Tube/Pipe Images
6061 Aluminum Round Tube/Pipe Specifications
Aluminum Alloy:6061
Alloy Designations:6061 AlMg1SiCu, 3.3214, BS H20, A96061,A-G1SUC,EN AW-6061
Temper: T4,T5,T6, T651
Surface Treatment: Mill Finish
Surface Protection: Paper-interleaved
Thickness: 1-40mm
Outside Diameter: 10-400mm
Length: 1,000-6,500mm
Standard length Size: 3,000mm, 2,000mm, 1,000mm
Packaging: Standard seaworthy export packing;
MOQ: 1Ton per size, total 20Tons for one order
Standard: GB/T4437, ASTM B211, EN 754
6061 Al-Mg-Si Aluminum Characteristics for guidance only
6061 Aluminum Chemical Compositions | |||||||||
Element | Manganese (Mn) | Iron (Fe) | Chromium (Cr) | Copper (Cu) | Magnesium (Mg) | Silicon (Si) | Zinc (Zn) | Titanium (Ti) | Aluminium (Al) |
Percentage % | 0.0-0.15 | 0.0-0.7 | 0.04-0.35 | 0.15-0.4 | 0.8-1.2 | 0.4-0.8 | 0.0-0.25 | 0.0-0.15 | Remainder |
6061 Aluminum Mechanical Properties | ||||||||
Property | (UTS)Tensile Strength
| (Proof)Yield Strength | Elongation at Break | Shear Modulus | Shear Strength | Elastic Modulus
| Fatigue Strength | Poisson’s Ratio |
Value | 130-410 MPa | 76-370 MPa | 3.4-20% | 26 GPa | 84-210 MPa | 69 GPa | 58-110MPa | 0.33 |
6061 Aluminum Thermal Properties | |||||||
Property | Latent Heat of Fusion | Maximum Temperature: Mechanical
| Melting Completion (Liquidus) | Melting Onset (Solidus) | Specific Heat Capacity | Thermal Conductivity | Thermal Expansion |
Value | 400 J/g | 170 °C | 650 °C | 580 °C | 900 J/kg-K | 170W/m-K | 24 µm/m-K |
6061 Aluminum Round Tube/Pipe Application
Suitable for applications requiring strength and light weight. These alloys are widely used in aerospace, automotive industry, construction and various structures and parts requiring strength and corrosion resistance.
6061 Aluminum Round Tube/Pipe Features
1.Lightweight, Aesthetic appeal
2.Corrosion resistance
3.Excellent Thermal Conductivity and Machinability and Recyclability
6061 Aluminum Round Tube/Pipe size (Just for reference)
Thickness(mm) | Diameter(mm) | Length (mm) |
2 | 20 | 4000mm |
2 | 25 | 4000mm |
3 | 25 | 4000mm |
3 | 32 | 6000mm |
3 | 50 | 6000mm |
4 | 48 | 4000mm |
6061 Aluminum Round Tube/Pipe Packing and Loading
1.Surface with blue PE films or paper-interleaved.
2.Packing: Export wooden pallet packing suitable to prevent moisture and safe for ocean delivery.
3.For FCL 1 x 20GP can load approx 20MT. For LCL 1MT-10MT
6061 Aluminum Round Tube/Pipe Manufacturer
We are a 6061 aluminum round tube manufacturer from China. We supply 6061T6 round pipe and 6061 T5 aluminum round tubing for sale. We can customize it according to your needs.
Kefio Alum manufacturers have been successful in Southeast Asia, the Middle East, Africa, and South America, such as the Philippines,Indonesia, Mozambique,Ecuador, UAE, etc…
