6061 Aluminum Square Tube Pipe Tubing For Sale
Type: 6061 Aluminum Square Tube Pipe
Price Range: $3,300-3,700
Delivery Time: 5-7 working days
Surface Treatment: Mill Finish
Production Process: Extruded
Surface Protection: Paper interleaved, PVC filmed or Plastic bag sleeved
Description
Kefio aluminum square tube&pipe has excellent machinability and weldability and can be applied in the structural field. It is also a perfect material for component production used in the automotive, aerospace, and marine industries. Outshine the competition with Kefio Aluminum. Aluminum square Tube&Pipe, a product designed to last and outperform the competition.Kefio makes it easy to find the right aluminum square tubes/pipes for any project..

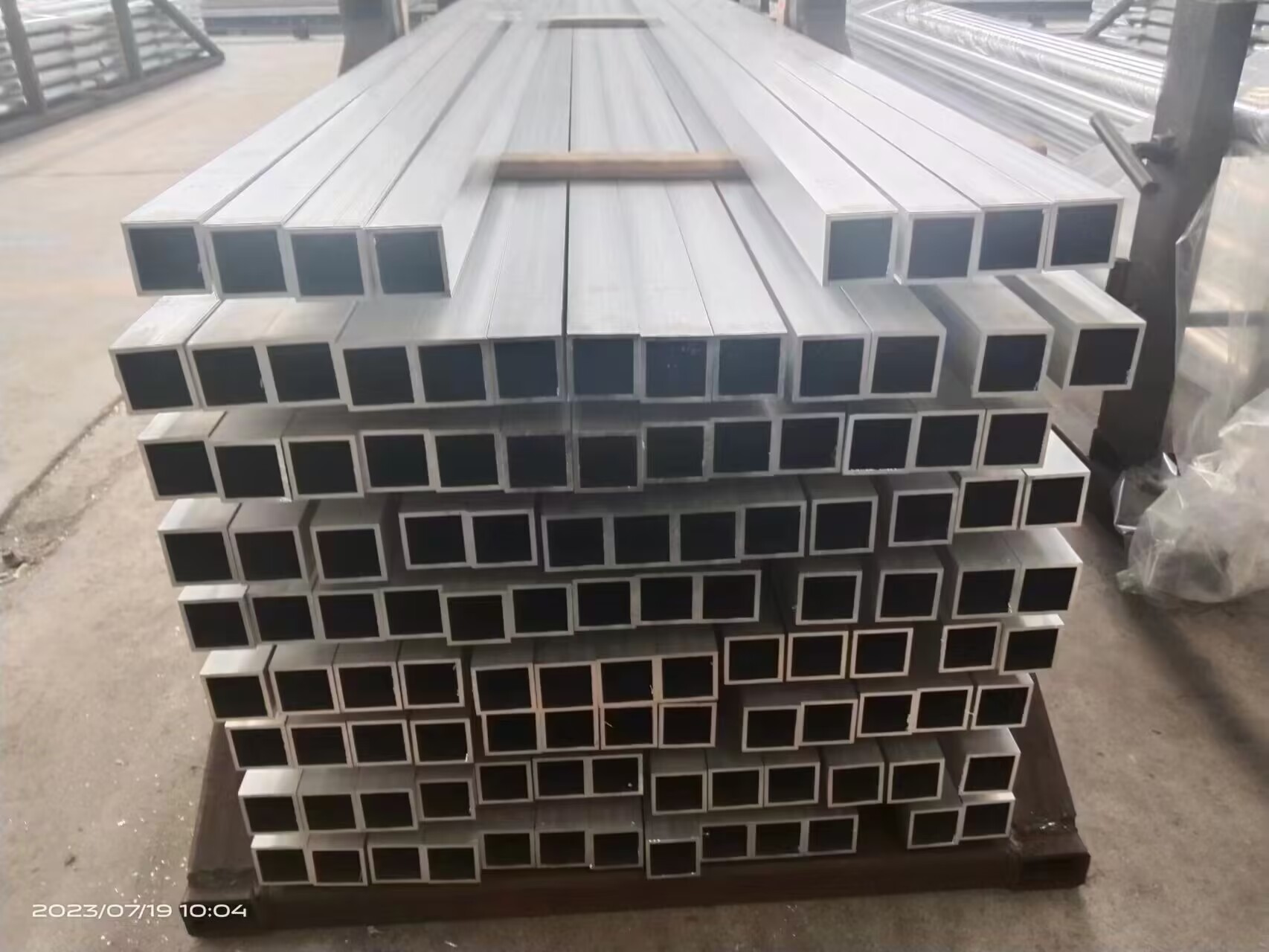

6061 Aluminum Square Tube/Pipe Images
6061 Aluminum Square Tube/Pipe Specifications
Aluminum Alloy:6061
Alloy Designations:6061 AlMg1SiCu, 3.3214, BS H20, A96061,A-G1SUC,EN AW-6061
Temper: T4,T5,T6, T651
Surface Treatment: Mill Finish
Surface Protection: Paper-interleaved
Thickness: 1-40mm
Diameter: 15x15-250x250mm
Length: 1,000-6,500mm
Packaging: Standard seaworthy export packing;
MOQ: 1Ton per size, total 20Tons for one order
Standard: GB/T4437, ASTM B211, EN 754
6061 Al-Mg-Si Aluminum Characteristics for guidance only
6061 Aluminum Chemical Compositions | |||||||||
Element | Manganese (Mn) | Iron (Fe) | Chromium (Cr) | Copper (Cu) | Magnesium (Mg) | Silicon (Si) | Zinc (Zn) | Titanium (Ti) | Aluminium (Al) |
Percentage % | 0.0-0.15 | 0.0-0.7 | 0.04-0.35 | 0.15-0.4 | 0.8-1.2 | 0.4-0.8 | 0.0-0.25 | 0.0-0.15 | Remainder |
6061 Aluminum Mechanical Properties | ||||||||
Property | (UTS)Tensile Strength
| (Proof)Yield Strength | Elongation at Break | Shear Modulus | Shear Strength | Elastic Modulus
| Fatigue Strength | Poisson’s Ratio |
Value | 130-410 MPa | 76-370 MPa | 3.4-20% | 26 GPa | 84-210 MPa | 69 GPa | 58-110MPa | 0.33 |
6061 Aluminum Thermal Properties | |||||||
Property | Latent Heat of Fusion | Maximum Temperature: Mechanical
| Melting Completion (Liquidus) | Melting Onset (Solidus) | Specific Heat Capacity | Thermal Conductivity | Thermal Expansion |
Value | 400 J/g | 170 °C | 650 °C | 580 °C | 900 J/kg-K | 170W/m-K | 24 µm/m-K |
6061 Aluminum Square Tube/Pipe Application
Suitable for applications requiring strength and light weight. These alloys are widely used in aerospace, automotive industry, construction and various structures and parts requiring strength and corrosion resistance.
6061 Aluminum Square Tube/Pipe Features
1.Lightweight, Aesthetic appeal
2.Corrosion resistance
3.Excellent Thermal Conductivity and Machinability and Recyclability
6061 Aluminum Square Tube/Pipe size (Just for reference)
Thickness(mm) | Diameter(mm) | Length (mm) |
2 | 20x20 | 6000mm |
3 | 20x20 | 6000mm |
3 | 25x25 | 6000mm |
2 | 40x40 | 6000mm |
2 | 50x50 | 6000mm |
3 | 50x50 | 6000mm |
6061 Aluminum Square Tube/Pipe Packing and Loading
1.Surface with blue PE films or paper-interleaved.
2.Packing: Export wooden pallet packing suitable to prevent moisture and safe for ocean delivery.
3.For FCL 1 x 20GP can load approx 20MT. For LCL 1MT-10MT
6061 Aluminum Square Tube/Pipe Manufacturer
We are a 6061 aluminum square tube manufacturer from China. We supply 6061T6 square pipe and 6061 T5 aluminum square tubing for sale. We can customize it according to your needs.
Kefio Alum manufacturers have been successful in Southeast Asia, the Middle East, Africa, and South America, such as the Philippines,Indonesia, Mozambique,Ecuador, UAE, Qataretc…
Get Latest Price and Detail
