Description
Kefio’s Aluminum angle bars are formed in an equal angle or unequal angle. Aluminum angle bars have defined edges, corrosion resistance, and light weights. With excellent workability and low maintenance, Kefio's aluminum angle bars are commonly applied in brackets, floor framing, rail industry applications, and structural purposes.
6061 Aluminum Angle Bar Images
6061 Aluminum Angle Bar Specifications
Aluminum Alloy:6061
Alloy Designations:6061 AlMg1SiCu, 3.3214, BS H20, A96061,A-G1SUC,EN AW-6061
Temper: T5,T6
Surface Treatment: Mill Finish
Surface Protection: Paper-interleaved
Thickness: 1-40mm
Outside Diameter: 10-400mm
Length: 1,000-6,500mm
Standard length Size: 3,000mm, 2,000mm, 1,000mm
Packaging: Standard seaworthy export packing;
MOQ: 1Ton per size, total 20Tons for one order
Standard: GB/T6892, ASTM B211, EN 754
6061 Al-Mg-Si Aluminum Characteristics for guidance only
6061 Aluminum Chemical Compositions | |||||||||
Element | Manganese (Mn) | Iron (Fe) | Chromium (Cr) | Copper (Cu) | Magnesium (Mg) | Silicon (Si) | Zinc (Zn) | Titanium (Ti) | Aluminium (Al) |
Percentage % | 0.0-0.15 | 0.0-0.7 | 0.04-0.35 | 0.15-0.4 | 0.8-1.2 | 0.4-0.8 | 0.0-0.25 | 0.0-0.15 | Remainder |
6061 Aluminum Mechanical Properties | ||||||||
Property | (UTS)Tensile Strength
| (Proof)Yield Strength | Elongation at Break | Shear Modulus | Shear Strength | Elastic Modulus
| Fatigue Strength | Poisson’s Ratio |
Value | 130-410 MPa | 76-370 MPa | 3.4-20% | 26 GPa | 84-210 MPa | 69 GPa | 58-110MPa | 0.33 |
6061 Aluminum Thermal Properties | |||||||
Property | Latent Heat of Fusion | Maximum Temperature: Mechanical
| Melting Completion (Liquidus) | Melting Onset (Solidus) | Specific Heat Capacity | Thermal Conductivity | Thermal Expansion |
Value | 400 J/g | 170 °C | 650 °C | 580 °C | 900 J/kg-K | 170W/m-K | 24 µm/m-K |
6061 Aluminum Angle Bar Application
These alloys are widely used in aerospace, automotive industry, construction and various structures and parts,industry molding, carrying vessels, truck body,etc.
6061 Aluminum Angle Bar Features
1.Lightweight, Aesthetic appeal
2.Corrosion resistance
3.Excellent Thermal Conductivity and Machinability and Recyclability
4. Welding and anodizing
6061 Aluminum Angle Bar (Just for reference)
Thickness(mm) | Diameter(mm) | Length (mm) |
2 | 25x25 | 6000mm |
3 | 25x25 | 6000mm |
3 | 30x30 | 6000mm |
2 | 40x40 | 6000mm |
4 | 40x40 | 6000mm |
2 | 50x50 | 6000mm |
3 | 50X50 | 6000mm |

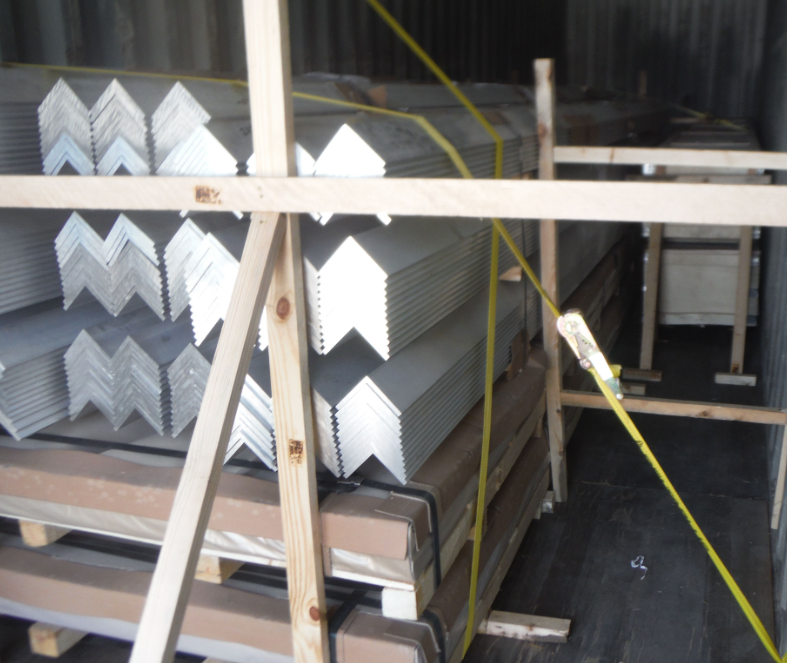

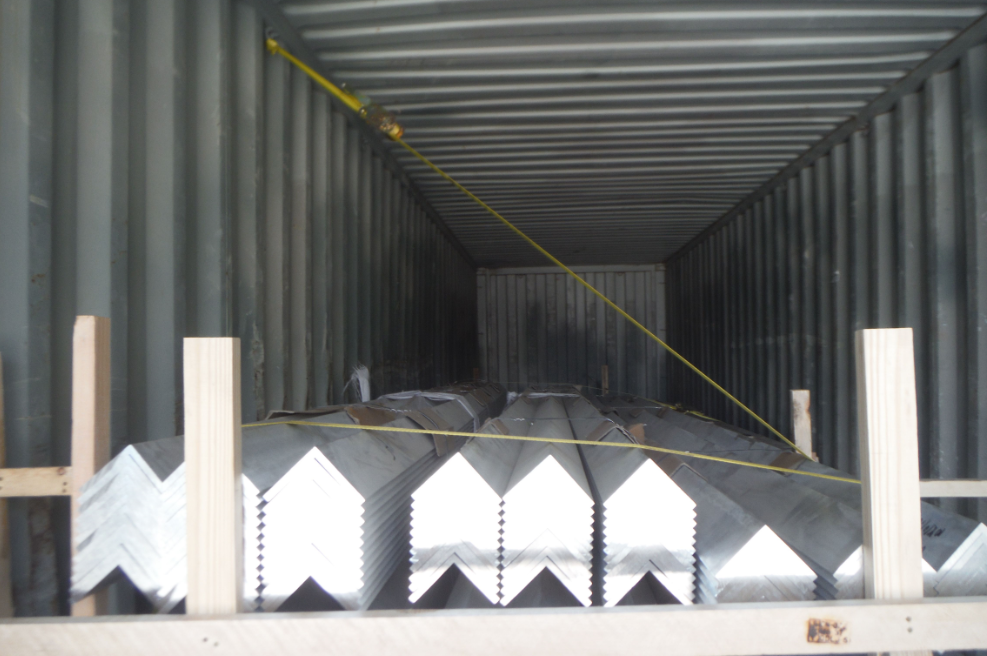

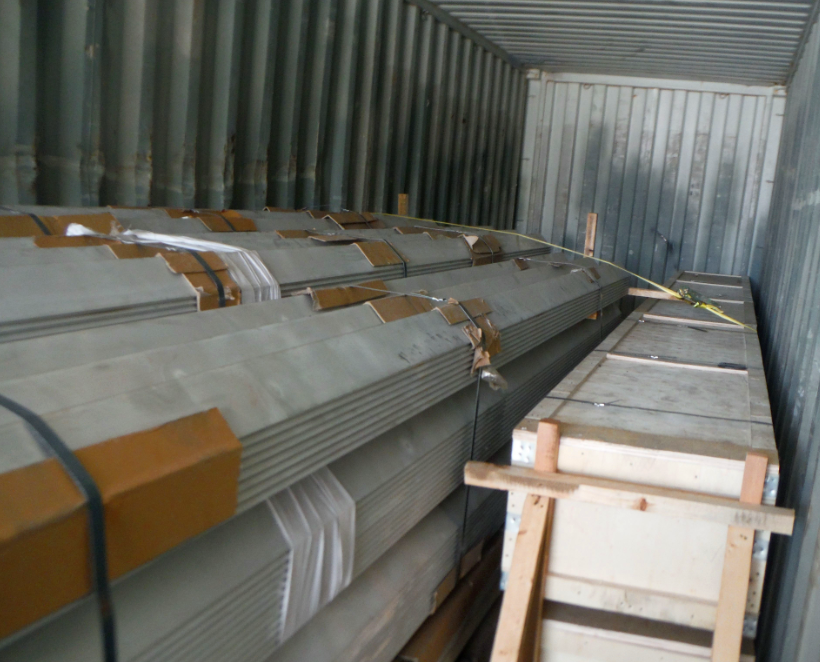

6061 Aluminum Angle Bar Packing and Loading
1.Surface with blue PE films or paper-interleaved.
2.Packing: Export wooden pallet packing suitable to prevent moisture and safe for ocean delivery.
3.For FCL 1 x 20GP can load approx 20MT. For LCL 1MT-10MT
6061 Aluminum Angle Bar Manufacturer
We are a 6061 aluminum angle bar manufacturer from China. We supply 6061 T6 and 6061 T5 aluminum angle bar for sale. We can customize it according to your needs.
Kefio Alum manufacturers have been successful in Southeast Asia, the Middle East, Africa, and South America, such as the Philippines,Indonesia, Mozambique,Ecuador, UAE, etc…
Get Latest Price and Detail
