6063 Aluminum flat smooth plain sheet plate
Type: 6063 Aluminum Sheet Plate
Price Range: $3,100-3,300
Delivery Time: 5-7 working days
Surface Treatment: Mill Finish
Packing: 1x20FCL can load 18-20Tons
Description
6063 aluminum is a high-quality alloy product produced by heat treatment and pre-stretching is a precipitation-hardened aluminum, silicon, magnesium alloy that has had great success in a wide range of all-purpose applications. 6063 aluminum is revered for its strength, formability, weldability, machinability, and corrosion resistance.

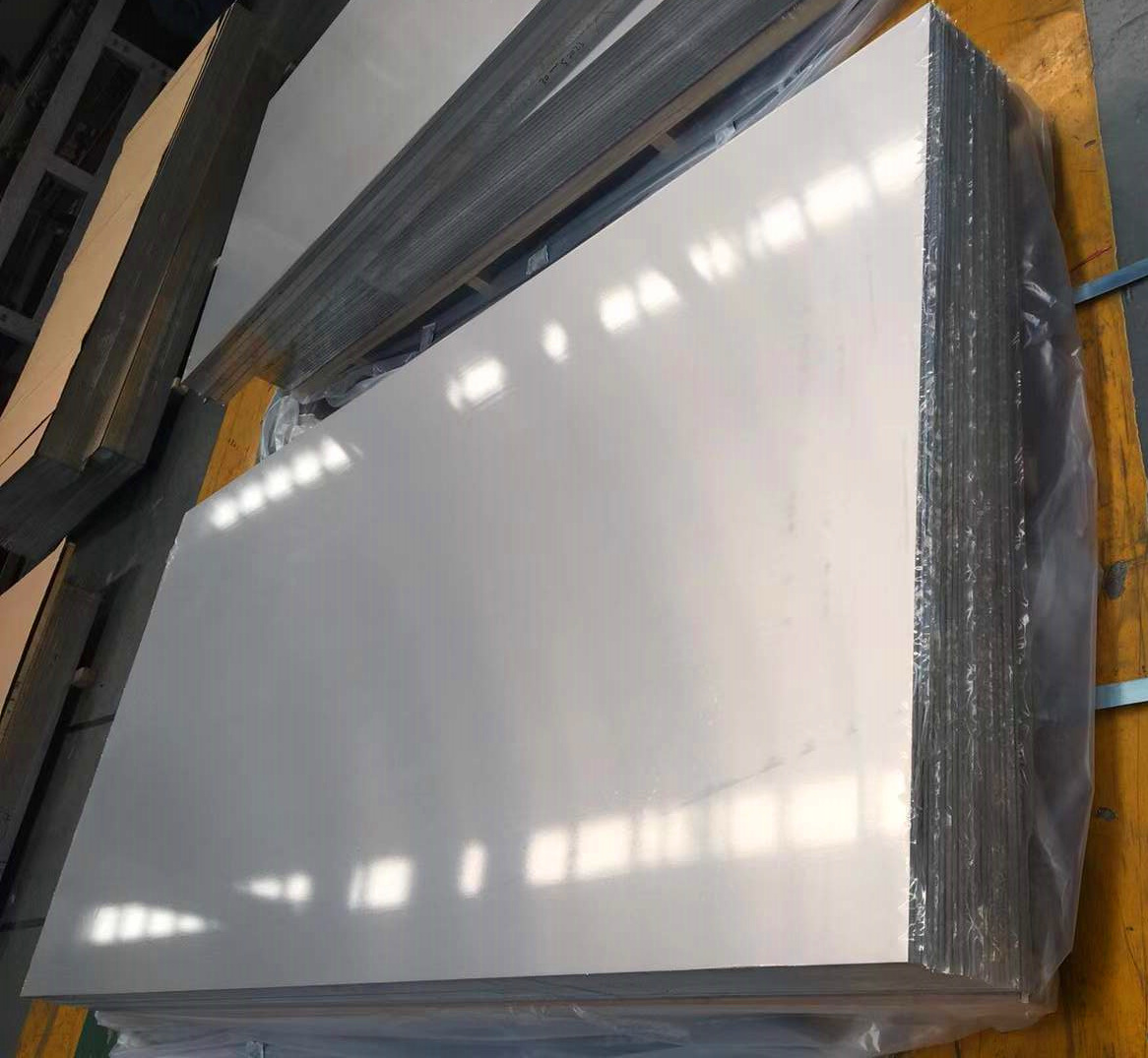

6063 Aluminum Flat Sheet Images
6063 Aluminum smooth Sheet Specifications
Aluminum Alloy:6063
Alloy Designations: 6063 AlMg0.7Si, BS H9, A96063, EN AW-6063, 6063A
Temper: T4, T5, T6,
Surface Treatment: Mill Finish
Surface Protection: Paper-interleaved, blue PVC films
Thickness: 0.3-6.0mm
Width: 600-2,200mm
Length: 800-11,000mm
Size: 1250x2500mm, 1500x3000mm,
Packaging: Standard seaworthy export packing;
MOQ: 1Ton per size, total 20Tons for one order
Standard: GB/T3880, ASTM B209, EN 485
6063 Al-Mg-Si Aluminum Characteristics for guidance only
6063 Aluminum Chemical Compositions | |||||||||
Element | Manganese (Mn) | Iron (Fe) | Chromium (Cr) | Copper (Cu) | Magnesium (Mg) | Silicon (Si) | Zinc (Zn) | Titanium (Ti) | Aluminium (Al) |
Percentage % | 0.0-0.1 | 0.0-0.35 | 0.0-0.1 | 0.0-0.1 | 0.45-0.9 | 0.2-0.6 | 0.0-0.1 | 0.0-0.1 | Remainder |
6063 Aluminum Mechanical Properties | ||||||||
Property | (UTS)Tensile Strength
| (Proof)Yield Strength | Elongation at Break | Shear Modulus | Shear Strength | Elastic Modulus
| Fatigue Strength | Poisson’s Ratio |
Value | 110-300 MPa | 49-270 MPa | 7.3-21% | 26 GPa | 70-190MPa | 68 GPa | 39-95MPa | 0.33 |
6063 Aluminum Thermal Properties | |||||||
Property | Latent Heat of Fusion | Maximum Temperature: Mechanical
| Melting Completion (Liquidus) | Melting Onset (Solidus) | Specific Heat Capacity | Thermal Conductivity | Thermal Expansion |
Value | 400 J/g | 160 °C | 650 °C | 620 °C | 900 J/kg-K | 190-220W/m-K | 23 µm/m-K |
6063 Aluminum Plain Sheet Application
Windows and floor, truck and bus bodies, tankage and-tank fittings, structural components, screw machine parts, high pressure applications, mine skips, transmission towers, moldings, pipes, and etc.
6063 Aluminum Smooth Sheet Package Dimension For Reference Only
For Flat Sheet&Plate (Based on density of 2,700 kg/m3) | |||
Thickness (mm)&Standard Size | Weight (Kg) | Estimated(Pcs) | Weight/Pcs |
5x1250x2500 | 1,000 | 23 PCS | 43.48 kgs |
5x1500x3000 | 1,000 | 16 PCS | 62.50 kgs |
6063 Aluminum Flat Sheet Packing and Loading
1.Surface with blue PE films or paper-interleaved.
2.Packing: Export wooden pallet packing suitable to prevent moisture and safe for ocean delivery.
3.For FCL 1 x 20GP can load approx 20MT. For LCL 1MT-10MT
6063 Aluminum Smooth Sheet Manufacturer
We are a 6063 aluminum smooth sheet manufacturer from China. We supply 6063 T4 smooth sheets and 6063 T5 aluminum flat sheets for sale. We can customize it according to your needs.
Kefio Alum manufacturers have been successful in Southeast Asia, the Middle East, Africa, and South America, such as the Philippines,Indonesia, Mozambique,Ecuador, UAE, etc…
