6082 Aluminum flat smooth plain sheet plate
Type: 6082 Aluminum Plain Sheet
Price Range: $3,100-3,300
Delivery Time: 5-7 working days
Surface Treatment: Mill Finish
Packing: 1x20FCL can load 18-20Tons
Description
6082 aluminum is a high-quality alloy product produced by heat treatment and pre-stretching is a precipitation-hardened aluminum, silicon, magnesium alloy that has had great success in a wide range of all-purpose applications. 6082 aluminum is revered for its strength, formability, weldability, machinability, and corrosion resistance.

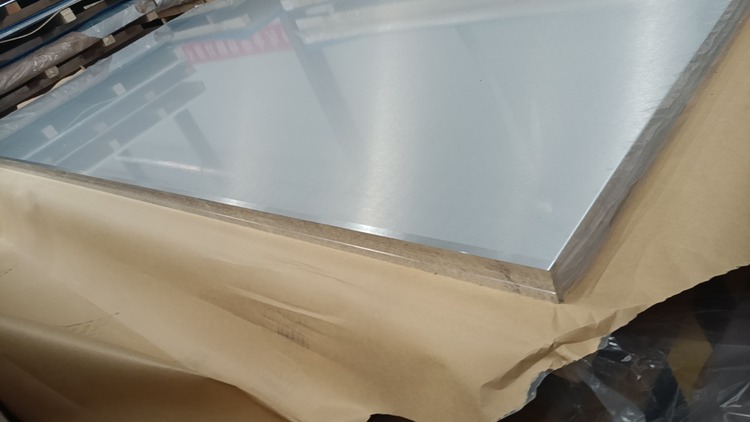

6082 Aluminum Flat Sheet Images
6082 Aluminum smooth Sheet Specifications
Aluminum Alloy:6082
Alloy Designations: 6082 AlSi1MgMn, 3.2315, BS H30, A96082,A-SGM0,7, EN AW-6082
Temper: T4,T6, T651, T6511
Surface Treatment: Mill Finish
Surface Protection: Paper-interleaved, blue PVC films
Thickness: 0.3-6.0mm
Width: 600-2,200mm
Length: 800-11,000mm
Size: 1250x2500mm, 1500x3000mm,
Packaging: Standard seaworthy export packing;
MOQ: 1Ton per size, total 20Tons for one order
Standard: GB/T3880, ASTM B209, EN 485
6082 Al-Mg-Si Aluminum Characteristics for guidance only
6082 Aluminum Chemical Compositions | |||||||||
Element | Manganese (Mn) | Iron (Fe) | Chromium (Cr) | Copper (Cu) | Magnesium (Mg) | Silicon (Si) | Zinc (Zn) | Titanium (Ti) | Aluminium (Al) |
Percentage % | 0.6-1.2 | 0.0-0.5 | 0.0-0.25 | 0.0-0.1 | 0.6-1.2 | 0.7-1.3 | 0.0-0.2 | 0.0-0.1 | Remainder |
6082 Aluminum Mechanical Properties | ||||||||
Property | (UTS)Tensile Strength
| (Proof)Yield Strength | Elongation at Break | Shear Modulus | Shear Strength | Elastic Modulus
| Fatigue Strength | Poisson’s Ratio |
Value | 140-340 MPa | 85-320 MPa | 6.3-18% | 26 GPa | 84-220MPa | 69 GPa | 55-130MPa | 0.33 |
6082 Aluminum Thermal Properties | |||||||
Property | Latent Heat of Fusion | Maximum Temperature: Mechanical
| Melting Completion (Liquidus) | Melting Onset (Solidus) | Specific Heat Capacity | Thermal Conductivity | Thermal Expansion |
Value | 400 J/g | 170 °C | 650 °C | 580 °C | 900 J/kg-K | 160W/m-K | 23 µm/m-K |
6082 Aluminum Plain Sheet Application
Ship,construction and building material,truck and bus bodies, tankage and-tank fittings, structural components, screw machine parts, high pressure applications, mine skips, transmission towers, moldings, pipes, and etc.
6082 Aluminum Flat Sheet Package Dimension For Reference Only
For Flat Sheet&Plate (Based on density of 2,700 kg/m3) | |||
Thickness (mm)&Standard Size | Weight (Kg) | Estimated(Pcs) | Weight/Pcs |
5x1250x2500 | 1,000 | 23 PCS | 43.48 kgs |
5x1500x3000 | 1,000 | 16 PCS | 62.50 kgs |
6082 Aluminum Sheet Packing and Loading
1.Surface with blue PE films or paper-interleaved.
2.Packing: Export wooden pallet packing suitable to prevent moisture and safe for ocean delivery.
3.For FCL 1 x 20GP can load approx 20MT. For LCL 1MT-10MT
6082 Aluminum Smooth Sheet Manufacturer
We are a 6082 aluminum smooth sheet manufacturer from China. We supply 6082 T651 smooth sheets and 6082 T6 aluminum flat sheets for sale. We can customize it according to your needs.
Kefio Alum manufacturers have been successful in Southeast Asia, the Middle East, Africa, and South America, such as the Philippines,Indonesia, Mozambique,Ecuador, UAE, etc…
