7075 T6 T651 Aluminum Pain Sheet Plate For Sale
Type: 7075 Aluminum sheet plate
Price Range: $3,900-4,450
Delivery Time: 5-7 working days
Surface Treatment: Mill Finish
Surface Protection: Paper interleaved, PE/PVC filming
Packing: 1x20FCL can load 18-20Tons
Description
7075 aluminum alloy with zinc as the primary alloying element.One of the highest strength and hardest alloys available.Especially where highly stressed parts are used. If annealed, this alloy is highly formable and may be flash or spot-welded. Heat-treating increases its strength considerably.

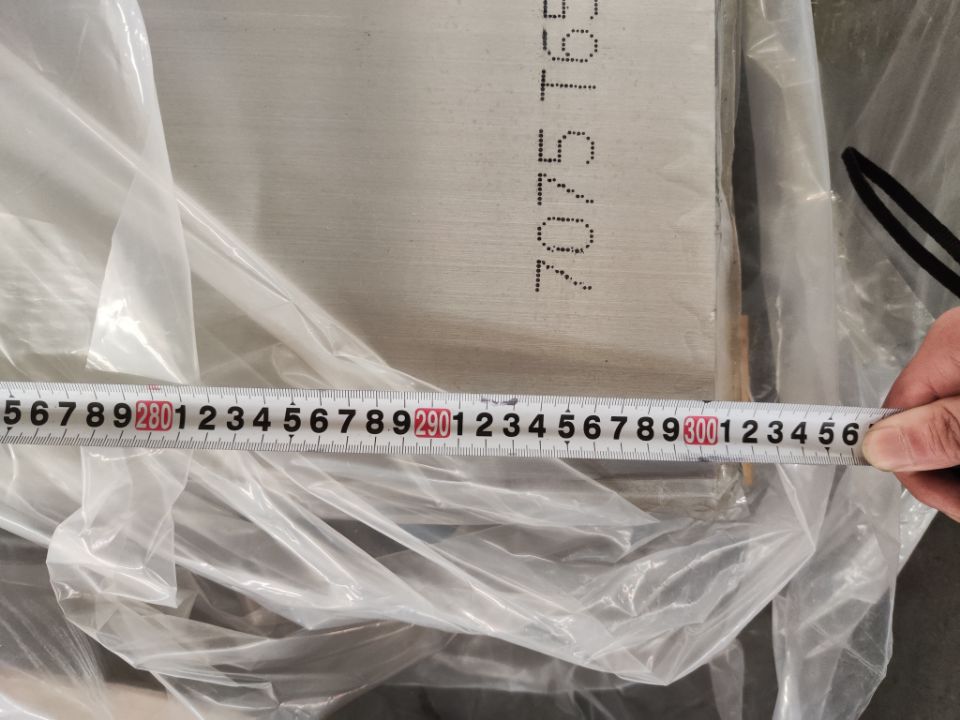

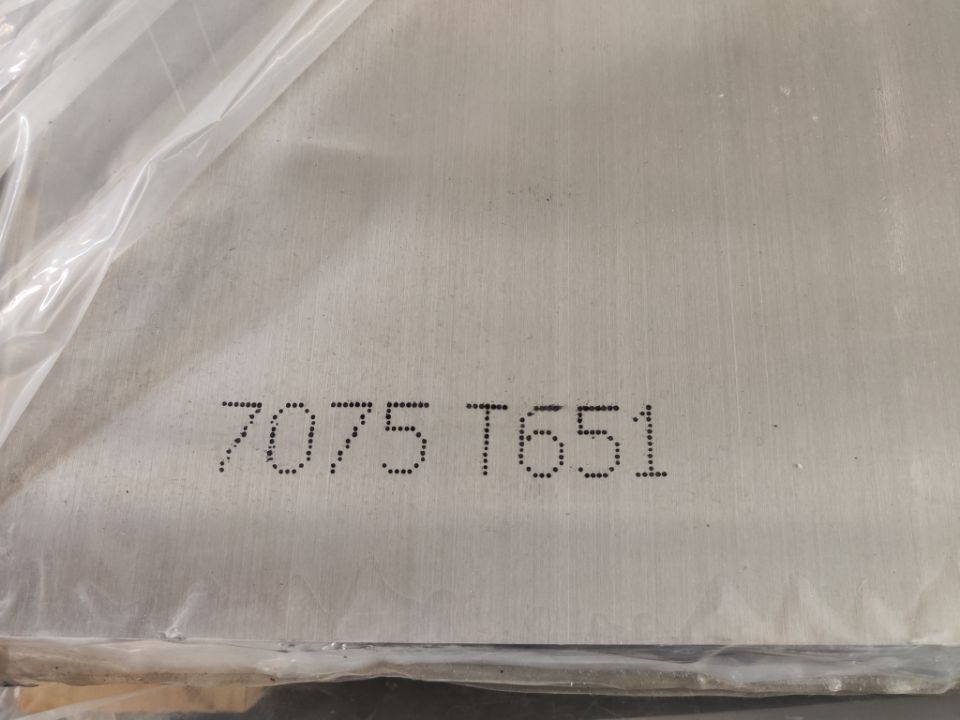

7075 Aluminum Flat Sheet Images
7075 Aluminum smooth Sheet Specifications
Aluminum Alloy:7075
Alloy Designations:7075 AlZn5.5MgCu, 3.4365, BS 2L95, A97075, EN AW-7075, A-Z5GU
Temper: T6, T351,T651
Surface Treatment: Mill Finish
Surface Protection: Paper-interleaved, blue PVC films
Thickness: 0.5-6.0mm
Width: 600-2,200mm
Length: 800-11,000mm
Size: 1250x2500mm, 1500x3000mm,
Packaging: Standard seaworthy export packing;
MOQ: 1Ton per size, total 20Tons for one order
Standard: GB/T3880, ASTM B209, EN 485
7075 Al-Mg-Si Aluminum Characteristics for guidance only
7075 Chemical Compositions | |||||||||
Element | Manganese (Mn) | Iron (Fe) | Chromium (Cr) | Copper (Cu) | Magnesium (Mg) | Silicon (Si) | Zinc (Zn) | Titanium (Ti) | Aluminium (Al) |
Present % | 0.0-0.3 | 0.0-0.5 | 0.18-0.28 | 1.2-2.0 | 2.1-2.9 | 0.0-0.4 | 5.1-6.1 | 0.0-0.2 | Remainder |
7075 Mechanical Properties | ||||||||
Property | (UTS)Tensile Strength
| (Proof)Yield Strength
| Elongation at Break
| Shear Modulus
| Shear Strength
| Elastic Modulus
| Fatigue Strength
| Poisson’s Ratio |
Value | 240-590 MPa | 120-510 MPa | 1.8-12% | 26GPa | 150-340MPa | 70GPa | 110-190MPa | 0.32 |
7075 Thermal Properties | ||||||
Latent Heat of Fusion (J/g） | Mechanical Max Temperature (°C) | Liquidus Melting Completion (°C) | Solidus Melting Completion (°C) | Specific Heat Capacity (J/Kg-K) | Thermal Conductivity (W/m-K) | Thermal Expansion (µm/m-K) |
380 | 200 | 640 | 480 | 870 | 130 | 23 |
7075 Aluminum Sheet Application
Aircraft Fittings, Gears and shafts, Fuse parts, Meter shafts and gears, Missile parts, Regulating valve parts, Worm gears, Bike frames, All terrain vehicle sprockets.etc.
7075 Aluminum Sheet Features
1. Aluminum alloy with zinc as the main alloying element
2. Can be strengthened by heat treatment
3. High hardness, high strength, good wear resistance, belongs to super hard aluminum alloy.
7075 Package Dimension For Reference Only
For Flat Sheet&Plate (Based on density of 2,700 kg/m3) | |||
Thickness (mm)&Standard Size | Weight (Kg) | Estimated(Pcs) | Weight/Pcs |
5x1250x2500 | 1,000 | 23 PCS | 43.48 kgs |
5x1500x3000 | 1,000 | 16 PCS | 62.50 kgs |
7075 Aluminum Sheet Packing and Loading
1.Surface with blue PE films or paper-interleaved.
2.Packing: Export wooden pallet packing suitable to prevent moisture and safe for ocean delivery.
3.For FCL 1 x 20GP can load approx 20MT. For LCL 1MT-10MT
7075 Aluminum Smooth Sheet Manufacturer
We are a 7075 aluminum smooth sheet manufacturer from China. We supply 7075 T6 smooth sheets and 7075 T651 aluminum flat sheets for sale. We can customize it according to your needs.
Kefio Alum manufacturers have been successful in Southeast Asia, the Middle East, Africa, and South America, such as the Philippines,Indonesia, Mozambique,Ecuador, UAE,Qatar, etc…
