AA1050 1050A Aluminum Flat Smooth Plain Sheet Plate
Type: AA1050 Aluminum Plain Sheet
Price Range: $2,850-2,950
Delivery Time: 5-7 working days
Surface Treatment: Mill Finish
Packing: 1x20FCL can load 18-20Tons
Description
Aluminum 1050,is known for its excellent corrosion resistance, high ductility and highly reflective finish.
Being commercially pure aluminum,1050 aluminum sheet contains more than 99.5% aluminum,1050 aluminum sheet has the characteristics of high plasticity, corrosion resistance, good electrical and thermal conductivity.

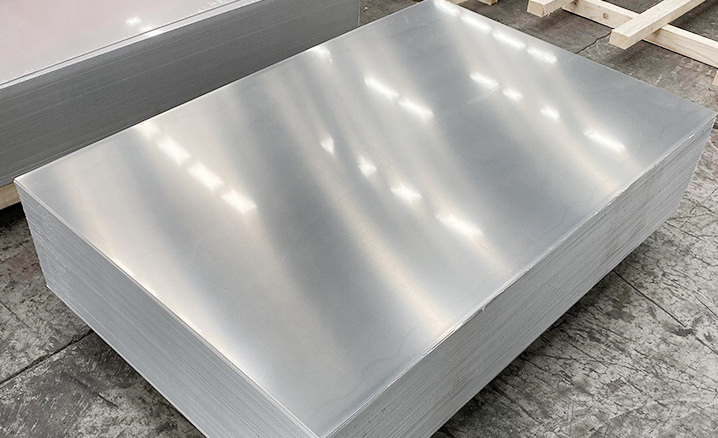

1050 Aluminum Smooth Sheet Images
AA1050 Aluminum Smooth Flat Sheet Specifications
| Alloy Designations | AA1050, A1050, 1050A, AI99.5, A91050, EN AW-1050 | ||||||||
| Temper | O, H12, H14, H16, H18, H22, H24, H26, H28 | ||||||||
| Surface Treatment | Mill Finish | ||||||||
| Surface Protection | Paper-interleaved, blue PVC films | ||||||||
| Thickness | 0.3-6.0mm | ||||||||
| Width | 600-2,200mm | ||||||||
| Length | 800-11,000mm | ||||||||
| Size | 1000x2000mm, 4x8ft, 1200x2400mm, 1219x2438mm, 1220x2440mm, 1250x2500mm, 1500x3000mm, 1524x3048mm; | ||||||||
| Packaging | Standard seaworthy export packing | ||||||||
| MOQ | 1Ton per size, total 20Tons for one order | ||||||||
| Standard | GB/T3880, ASTM B209, EN 485 | ||||||||
1050 Aluminum Characteristics (Pure Al for guidance only)
1050 Chemical Compositions | |||||||||
Element | Manganese (Mn) | Iron (Fe) | Chromium (Cr) | Copper (Cu) | Magnesium (Mg) | Silicon (Si) | Zinc (Zn) | Titanium (Ti) | Aluminium (Al) |
Percentage % | 0.0-0.05 | 0.0-0.4 | - | 0.0-0.05 | 0.0-0.05 | 0.0-0.25 | 0.0-0.05 | 0.0-0.03 | 99.5 |
1050 Mechanical Properties | ||||||||
Property | (UTS)Tensile Strength
| (Proof)Yield Strength | Elongation at Break | Shear Modulus | Shear Strength | Elastic Modulus
| Fatigue Strength | Poisson’s Ratio |
Value | 76-140 MPa | 25-120 MPa | 4.6-37 % | 26 GPa | 52-81 MPa | 68 GPa | 31-57 MPa | 0.33 |
1050 Thermal Properties | |||||||
Property | Latent Heat of Fusion | Maximum Temperature: Mechanical
| Melting Completion (Liquidus) | Melting Onset (Solidus) | Specific Heat Capacity | Thermal Conductivity | Thermal Expansion |
Value | 400 J/g | 170 °C | 640 °C | 650 °C | 900 J/kg-K | 230W/m-K | 24 µm/m-K |
1050 Aluminum Sheet Application
Daily necessities, lighting fixtures, reflectors, decorations, chemical industry containers, heat sinks, signs, electronics, lamps, nameplates, electrical appliances, stamping parts and other products. In some occasions that require high corrosion resistance and form-ability, but not high requirements for strength, chemical equipment is its typical application.
1060 Package Dimension For Reference Only
For Flat Sheet&Plate (Based on density of 2,700 kg/m3) | |||
Thickness (mm)&Standard Size | Weight (Kg) | Estimated(Pcs) | Weight/Pcs |
2x1000x2000 | 1,000 | 92 PCS | 10.86 kgs |
2x1220x2440 | 1,000 | 62 PCS | 16.13 kgs |
2x1250x2500 | 1,000 | 59 PCS | 16.95 kgs |
2x1500x3000 | 1,000 | 41 PCS | 24.39 kgs |
1050 Aluminum Sheet Packing and Loading
1.Surface with blue PE films or paper-interleaved.
2.Packing: Export wooden pallet packing suitable to prevent moisture and safe for ocean delivery.
3.For FCL 1 x 20GP can load approx 20MT. For LCL 1MT-8MT
Which aluminum alloy is the cheapest?
Compared with steel, the aluminum price per KGS is much higher. The alloy 1050 is called pure aluminum and is the most wildly used alloy number for aluminum. Since it can be produced with fresh aluminum ingot directly, the production process is simple, so the 1050 aluminum alloy is the cheapest one.
