AA1060 Aluminum Flat Smooth Plain Sheet Plate
Type: AA1060 Aluminum Plain Sheet
Price Range: $2,850-2,950
Delivery Time: 5-7 working days
Surface Treatment: Mill Finish
Packing: 1x20FCL can load 18-20Tons
Description
Aluminum AA1060, 1060A,is known for its excellent corrosion resistance, high ductility and highly reflective finish.
Being commercially pure aluminum,1060 aluminum sheet contains more than 99.6% aluminum,1060 aluminum sheet has the characteristics of high plasticity, corrosion resistance, good electrical and thermal conductivity

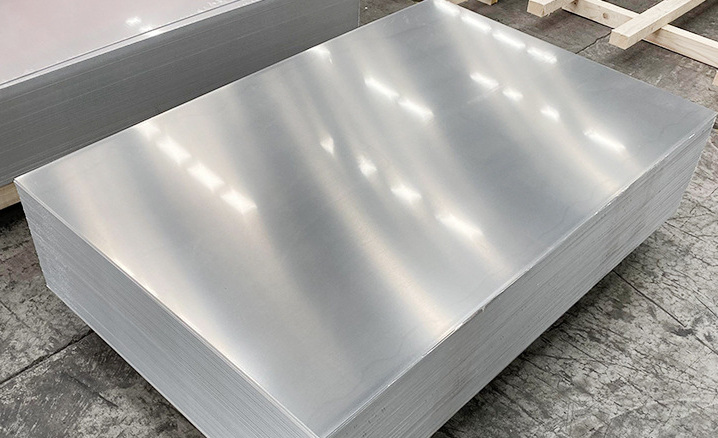

1060 Aluminum Flat Sheet Images
1060 Aluminum Flat Sheet Specifications
Alloy Designations: AA1060, A1060, 1060A, AI99.6, A9105\60, EN AW-1060
Temper: O, H12, H14, H16, H18, H22, H24, H26, H28
Surface Treatment: Mill Finish
Surface Protection: Paper-interleaved, blue PVC films
Thickness: 0.3-6.0mm
Width: 600-2,200mm
Length: 800-11,000mm
Size: 1000x2000mm, 4x8ft, 1200x2400mm, 1219x2438mm, 1220x2440mm, 1250x2500mm, 1500x3000mm, 1524x3048mm;
Packaging: Standard seaworthy export packing;
MOQ: 1Ton per size, total 20Tons for one order
Standard: GB/T3880, ASTM B209, EN 485
1060 Aluminum Sheet Chemistry Composition
Chemical Compositions | |||||||||
Element | Manganese (Mn) | Iron (Fe) | Chromium (Cr) | Copper (Cu) | Magnesium (Mg) | Silicon (Si) | Zinc (Zn) | Titanium (Ti) | Aluminium (Al) |
Percentage % | 0.0-0.03 | 0.0-0.35 | - | 0.0-0.05 | 0.0-0.03 | 0.0-0.25 | 0.0-0.05 | 0.0-0.03 | 99.6 |
1060 Aluminium Sheet Mechanical Properties
Mechanical Properties | |||||||||
Property | (UTS)Tensile Strength
| (Proof)Yield Strength | Elongation at Break | Brinell Hardness | Shear Modulus | Shear Strength | Elastic Modulus
| Fatigue Strength | Poisson’s Ratio |
Value | 63-130 MPa | 17-110 MPa | 1.1-30 % | 20-35 HB | 26 GPa | 42-75 MPa | 68 GPa | 15-50 MPa | 0.33 |
1060 Aluminium Sheet Thermal Properties
Thermal Properties | |||||||
Property | Latent Heat of Fusion | Maximum Temperature: Mechanical
| Melting Completion (Liquidus) | Melting Onset (Solidus) | Specific Heat Capacity | Thermal Conductivity | Thermal Expansion |
Value | 400 J/g | 170 °C | 660 °C | 650 °C | 900 J/kg-K | 230W/m-K | 24 µm/m-K |
1060 Aluminum Plain Sheet Application
It is wildly used for cookware, lighting, lamps, road sign, auto part, truck body, PS board, Building Decoration, Distribution Cabinet, Curtain Wall,heat sinks, heat exchangers etc.
1060 Aluminum Flat Sheet Package Dimension For Reference Only
For Flat Sheet&Plate (Based on density of 2,700 kg/m3) | ||
Thickness (mm)&Standard Size | Weight (Kg) | Estimated PCS |
1x1000x2000 | 1,000 | 185 PCS |
1x1220x2440 | 1,000 | 124 PCS |
1x1250x2500 | 1,000 | 118 PCS |
1x1500x3000 | 1,000 | 82 PCS |
1060 Aluminum Sheet Packing and Loading
1.Surface with blue PE films or paper-interleaved.
2.Packing: Export wooden pallet packing suitable to prevent moisture and safe for ocean delivery.
3.For FCL 1 x 20GP can load approx 20MT. For LCL 1MT-10MT
1060 Aluminum Smooth Sheet Manufacturer
We are a 1060 aluminum smooth sheet manufacturer from China. We supply AA1060 smooth sheets and 1060A aluminum flat sheets for sale. We can customize it according to your needs.
Kefio Alum manufacturers have been successful in Southeast Asia, the Middle East, Africa, and South America, such as the Philippines,Indonesia, Mozambique,Ecuador, UAE, etc…
