AA1100 Aluminum Flat Smooth Plain Flat Sheet Plate
Type: AA1100 Aluminum Plain Sheet
Price Range: $2,850-2,950
Delivery Time: 5-7 working days
Surface Treatment: Mill Finish
Packing: 1x20FCL can load 18-20Tons
Description
Being commercially pure aluminum,The purity of 1100 can reach more than 99.00%. As it is soft and ductile, 1100 is most often employed where structural strength is not a primary requirement. It is extremely resistant to corrosion, and therefore finds excellent utilization in the chemical, cookware, and food processing industries.Its weld ability is second to none and it is commonly employed in the architectural field and building trades.

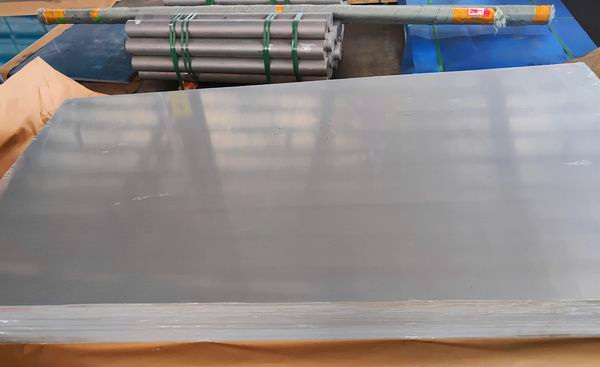

1100 Aluminum Flat Sheet Images
1100 Aluminum Flat Sheet Specifications
Aluminum Alloy: 1100
Alloy Designations: A1100, A1100, 1100A, Al99.0,A91100, EN AW-1100
Temper: O, H12, H14, H16, H18, H22, H24, H26, H28
Surface Treatment: Mill Finish
Surface Protection: Paper-interleaved, blue PVC films
Thickness: 0.3-6.0mm
Width: 600-2,200mm
Length: 800-11,000mm
Size: 1000x2000mm, 4x8ft, 1200x2400mm, 1219x2438mm, 1220x2440mm, 1250x2500mm, 1500x3000mm, 1524x3048mm;
Packaging: Standard seaworthy export packing;
MOQ: 1Ton per size, total 20Tons for one order
Standard: GB/T3880, ASTM B209, EN 485
1100 Aluminum Flat Sheet Characteristics (Pure Al for guidance only)
1100 Aluminum Chemical Compositions | |||||||||
Element | Manganese (Mn) | Iron (Fe) | Chromium (Cr) | Copper (Cu) | Magnesium (Mg) | Silicon (Si) | Zinc (Zn) | Titanium (Ti) | Aluminium (Al) |
Percentage % | 0.0-0.05 | 0.0-0.95 | - | 0.05-0.2 | 0.0-0.05 | 0.0-0.95 | 0.0-0.1 | - | 99 |
1100 Aluminum Mechanical Properties | ||||||||
Property | (UTS)Tensile Strength
| (Proof)Yield Strength | Elongation at Break | Shear Modulus | Shear Strength | Elastic Modulus
| Fatigue Strength | Poisson’s Ratio |
Value | 86-170 MPa | 28-150 MPa | 1.1-32 % | 26 GPa | 54-95 MPa | 69 GPa | 32-71MPa | 0.33 |
1100 Aluminum Thermal Properties | |||||||
Property | Latent Heat of Fusion | Maximum Temperature: Mechanical
| Melting Completion (Liquidus) | Melting Onset (Solidus) | Specific Heat Capacity | Thermal Conductivity | Thermal Expansion |
Value | 400 J/g | 180 °C | 660 °C | 640 °C | 900 J/kg-K | 220W/m-K | 24 µm/m-K |
1100 Aluminum Plain Sheet Application
Reflectors, cooking utensils and kitchenware, decorative parts, gift-ware, dials, name-plates, tank cars, storage tanks, chemical equipment, sheet metal work, heat ex-changers, and etc.
1100 Aluminum Plain Sheet Package Dimension For Reference Only
For Flat Sheet&Plate (Based on density of 2,700 kg/m3) | |||
Thickness (mm)&Standard Size | Weight (Kg) | Estimated(Pcs) | Weight/Pcs |
3x1000x2000 | 1,000 | 61 PCS | 16.39 kgs |
3x1220x2440 | 1,000 | 41 PCS | 24.39 kgs |
3x1250x2500 | 1,000 | 39 PCS | 25.64 kgs |
3x1500x3000 | 1,000 | 27 PCS | 37.04 kgs |
1100 Aluminum Sheet Packing and Loading
1.Surface with blue PE films or paper-interleaved.
2.Packing: Export wooden pallet packing suitable to prevent moisture and safe for ocean delivery.
3.For FCL 1 x 20GP can load approx 20MT. For LCL 1MT-10MT
1100 Aluminum Smooth Sheet Manufacturer
We are a 1100 aluminum smooth sheet manufacturer from China. We supply AA1100 smooth sheets and 1100A aluminum flat sheets for sale. We can customize it according to your needs.
Kefio Alum manufacturers have been successful in Southeast Asia, the Middle East, Africa, and South America, such as the Philippines,Indonesia, Mozambique,Ecuador, UAE, etc…
Get Latest Price and Detail
