The Pure Aluminum Sheet Use and Buy Guide

What Is Pure Aluminum Sheet?

1 Series aluminum sheets, also called industrial pure aluminum sheets, have excellent ductility and tensile strength. They exhibit good plasticity, corrosion resistance, electrical and thermal conductivity. The production process is straightforward, with mature technology, offering cost advantages over other alloys.

Let us look at these pure aluminum sheets in more detail.

Part1. What Are The Difference of Pure Aluminum Sheets?

1.AA1050/1050A aluminum sheets contain over 99.5% aluminum,they possess high ductility, corrosion resistance, electrical conductivity, and thermal conductivity, but lower strength.

2.AA1060/1060A aluminum sheets contain over 99.6%, they have excellent ductility and tensile strength, suitable for conventional processing methods like stamping and stretching.

3.AA1100/1100A aluminum sheets contain over 99.0%, it is a single production process and relatively inexpensive and has conductive, good thermal conductivity, which is very good.

Part2. What Are The Difference of Tempers?

Temper: O, H12, H14, H16, H18

Hardness: O＜H12＜H14＜H16＜H18

Elongation: O＞H12＞H14＞ H16＞H18

Part3. What Are The Applications of Pure Aluminum Sheets?

They are mainly used in applications where high strength is not required, such as road signage,PS board,architectural decoration, and kitchenware, trucks, building materials, heat sinks,etc.

Part4. What Are The Features of Pure Aluminum Sheets?

1.Good formability, good weldability, beautiful

2.High plasticity, good electrical and thermal conductivity

3.low density: 2.7kg/m3.

4. Easy processing and corrosion resistance

5. No low-temperature brittleness

6. Strong reflectivity and Non-magnetic,no sparks when impacted

7.Nuclear radiation resistance,It has sound absorption and can be used as sound insulation material

8.It cannot be strengthened by heat treatment, and can only be cold-worked to increase the strength, but the strength is not high.

Part5. What Are The Difference of Alloy Designations?

1050: AA1050, A1050, 1050A, Al99.5,A91050, EN AW-1050

1060: AA1060, A1060, 1060A, Al99.6,A91060, EN AW-1060

1100: AA1100, A1100, 1100A, Al99.0,A91100, EN AW-1100

Part6. What Are The Sizes That Customers Often buy?

Stand size: 1220x2440mm, 4’x8’, 1250x2500mm, 1500x3000mm;

Conclusion

Today there is about pure aluminum sheet end here, For some basic parts we have done a detailed introduction. For any related aspects of the problem, you are welcome to contact us at any time to consult us.

The Marine Aluminum Grade Use and Buy Guide

What Is Marine Grade Aluminum Sheet Plate?

5 Series aluminum sheets, also called marine grade or AL-Mg alloy aluminum sheets,which is the most widely used rust-proof aluminum. This alloy has high strength, especially fatigue strength, high plasticity, and corrosion resistance, good weldability, poor machinability, and can be polished. Main alloy are 5052 and 5083.

Let us look at these marine grade aluminum sheets in more detail.

Part1. What Are The Difference of Marine Grade Aluminum Sheets?

1.5052 alloy aluminum sheets plates exhibit excellent formability, corrosion resistance, weldability, and moderate static strength.

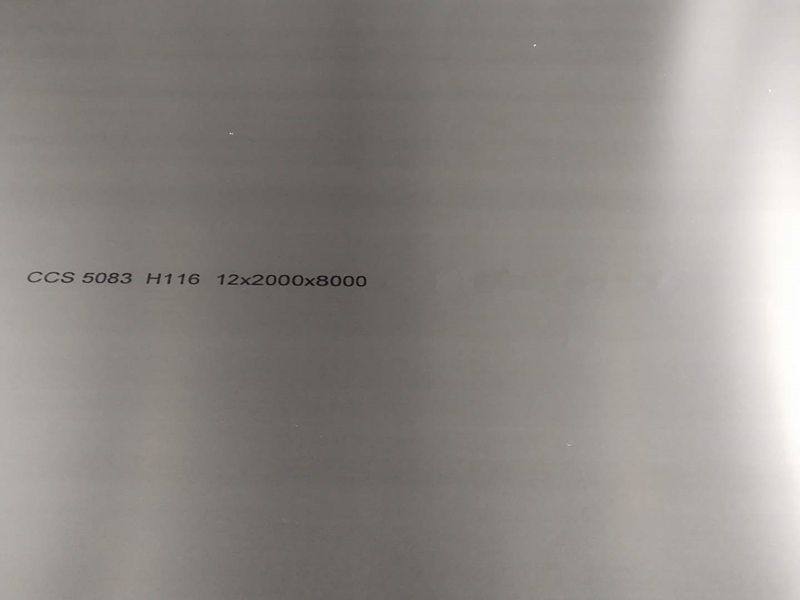

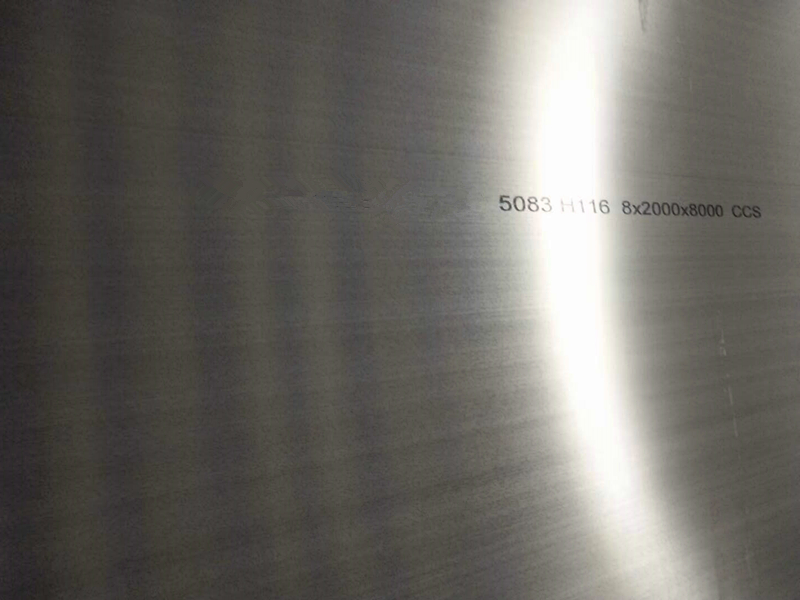

2.5083 alloy aluminum sheets plates are employed in situations that demand high corrosion resistance, good weldability, and moderate strength.

According to tensile strength and yield strength, 5083 aluminum plates are significantly stronger than 5052 aluminum plates.

Their chemical compositions are difference:

5052: Si 0-0.25  Fe 0-0.4  Cu 0-0.1  Mn 0-0.1  Mg 2.2-2.8  Cr 0.15-0.35  Zn 0-0.1

5083: Si 0-0.4  Fe 0-0.4  Cu 0-0.1  Mn 0.4-1.0  Mg 4.0-4.9  Cr 0.05-0.25  Zn 0-0.25

Part2.What Are The Difference of Tempers?

5052 O,H12,H22,H24,H32,H111

5083 O, H22,H111, H112,H116,H321

Part3.What Are The Applications of Marine Grade Aluminum Sheets Plates?

5052-They are used in the manufacture of aircraft fuel tanks,sheet metal parts for transportation vehicles, ships, instruments, streetlight brackets, rivets, and hardware products, among other applications.

5083-These include welded components for ships,Yachts, boats, trucks and aircraft panels, pressure vessels with strict fire resistance requirements, refrigeration equipment, TV towers, transportation equipment, missile components, and more.

Part4.What Are The Features of Marine Grade Aluminum Sheets Plates?

1.Good formability, good weldability, beautiful

2.High plasticity, good electrical and thermal conductivity

4. Easy processing and corrosion resistance

5. No low-temperature brittleness

6. Strong reflectivity and Non-magnetic,no sparks when impacted

Part5.What Are The Difference of Alloy Designations?

5052: 5052,AlMg2.5, 3.3523, A95052, A-G2,5C, EN AW-5052

5083: AlMg4.5Mn0.7, 3.3547,BS N8, A95083,A-G4,5Mn, EN AW-5083

Part6. What Are The Sizes That Customers Often buy?

Stand size: 1250x2500mm, 1500x3000mm;2000x4000mm,2000x6000mm,2000x8000mm.

Conclusion

Today there is about marine grade aluminum sheet plates end here, For some basic parts we have done a detailed introduction. For any related aspects of the problem, you are welcome to contact us at any time to consult us.
